A complete solar and wind backup system that delivers up to 7,200W of power with multiple renewable charging options for home and off-grid use.

Overview

This Powerhouse system combines the Powerhouse Generator, Powerhouse Power Pod, 440W rigid bifacial solar panel, and 350W wind turbine into a renewable energy backup solution. It is designed for home backup and off-grid applications, providing solar, wind, and AC charging options with expandable battery and power capacity.

Benefits

  • Provides multiple renewable charging sources to support power availability in different conditions.
  • Supplies backup power for home circuits, devices, and heavy-duty appliances during outages.
  • Reduces reliance on a single charging source by combining solar, wind, and AC charging.
  • Allows power and battery capacity to grow as energy requirements increase.
  • Provides continuous power during outages with 10ms UPS functionality.
  • Makes it easier to monitor battery level, power usage, and remaining runtime through the built-in LED display.

Features

  • 7,200W continuous output with 240V split-phase and 120V single-phase operation.
  • Pure sine wave inverter with expandable peak power up to 28,800W.
  • 4,800Wh AGM sealed lead-acid battery with expandable capacity up to 28.8kWh using five Power Pods.
  • Supports up to 2,000W solar charging, 1,000W wind charging, and 1,300W AC charging.
  • Supports combining up to three Powerhouse units for up to 21,600W output.
  • Includes a 440W rigid bifacial solar panel with N-Type TOPCon cells.
  • Includes a 350W wind turbine rated at 27 MPH.
  • Multiple AC, USB, and DC ports for connecting different devices and equipment.
  • 175A maximum expansion port.
  • Plug-and-play system design for simplified setup.

Specifications

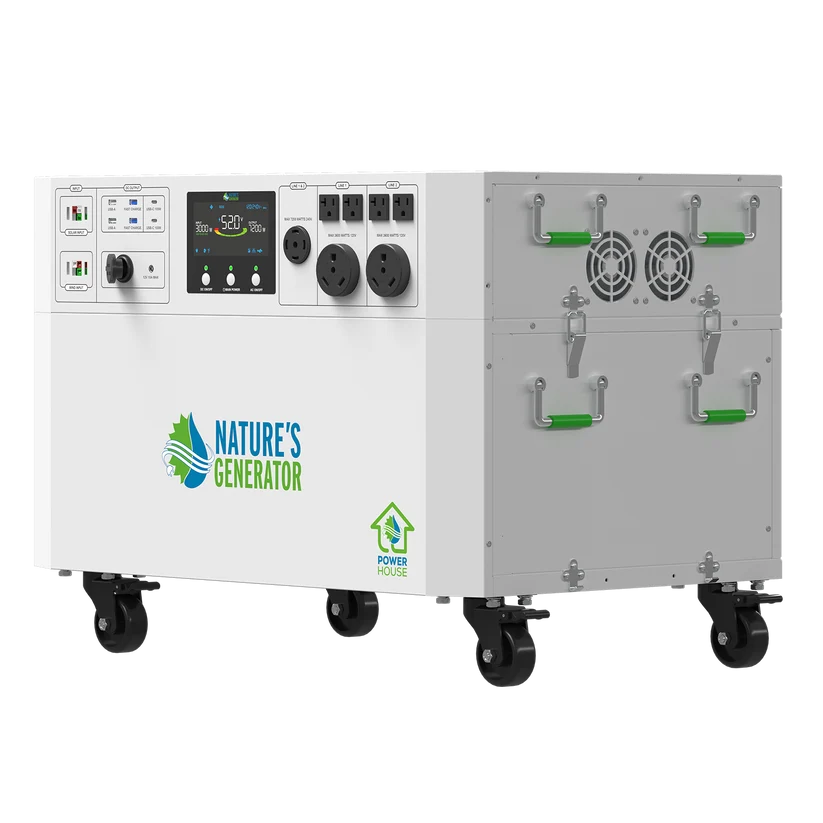

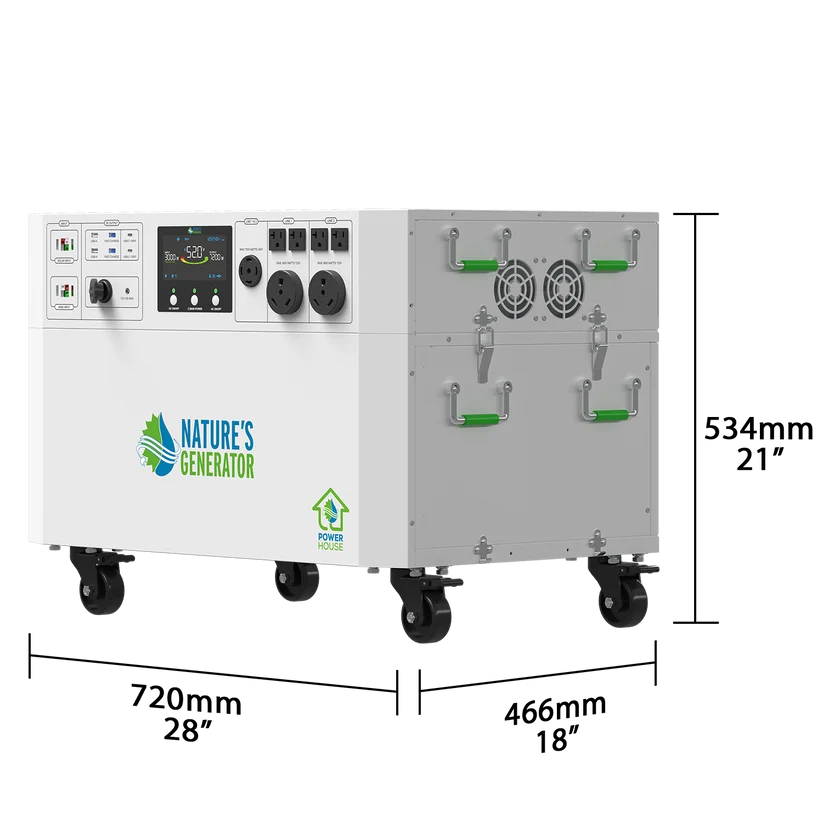

Powerhouse Generator

  • Continuous Output Power: 7,200W max
  • Expandable Continuous Peak Power: 14,400W
  • Output Peak Power: 14,400W
  • Expandable Peak Power: 28,800W
  • Output Voltage: 240V split phase; 120V single phase
  • Output Frequency: 60Hz
  • Output Power Form: Pure sine wave
  • Battery Capacity: 48V 100Ah (4,800Wh)
  • Expandable Capacity: 28.8kWh with 5 × Power Pods
  • Battery Chemistry: AGM sealed lead acid
  • Battery Self-Discharge: Recommended to recharge every 4 months
  • Solar Charger: 2,000W
  • Wind Charger: 1,000W
  • AC Charger: 1,300W, 120V AC
  • AC Outlets: 2 × TT-30R; 4 × NEMA 5-20R; 1 × NEMA L14-30R
  • USB-A Ports: 2 × 5V 2.4A, 12W
  • USB-A Fast Charge Ports: 2 × 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3A, 60W
  • USB-C Ports: 2 × 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 5A, 100W
  • DC Socket: 12V 10A, 120W
  • DC Barrel: 12V 10A, 120W
  • Expansion Port: 175A max
  • Weight: 434 lbs (197 kg)
  • Operating Temperature: 32–104°F (0–40°C)
  • Storage Temperature: 23–111°F (-5–45°C)
  • Warranty: 1-Year Limited Warranty
  • Dimensions: 28 × 18 × 17 in. (720 × 466 × 440 mm)
  • Dimensions with Wheels: 28 × 18 × 21 in. (720 × 466 × 534 mm)

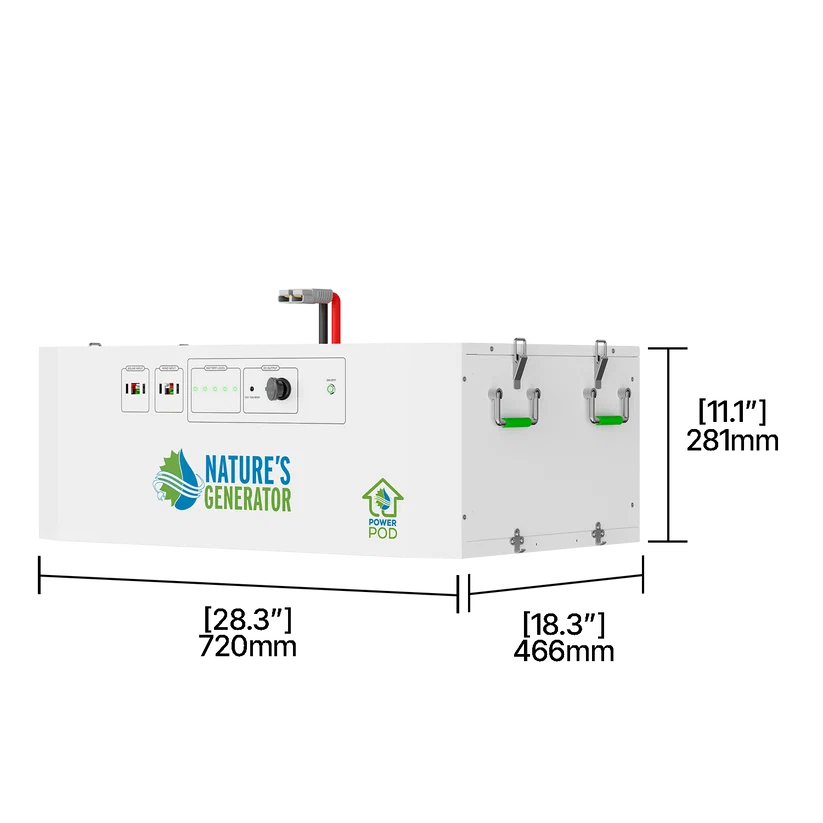

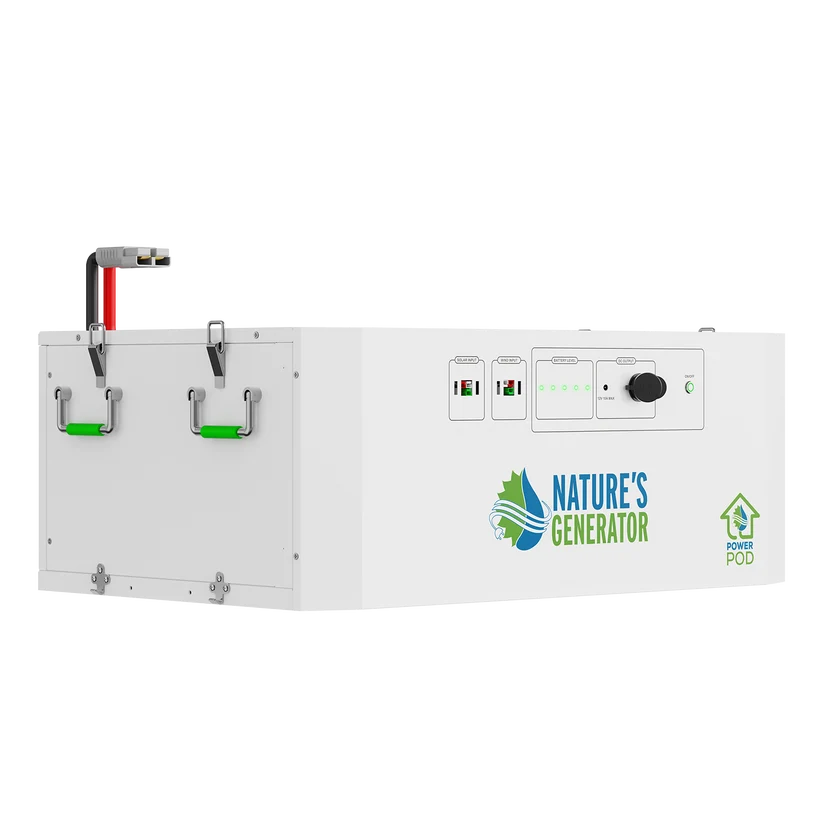

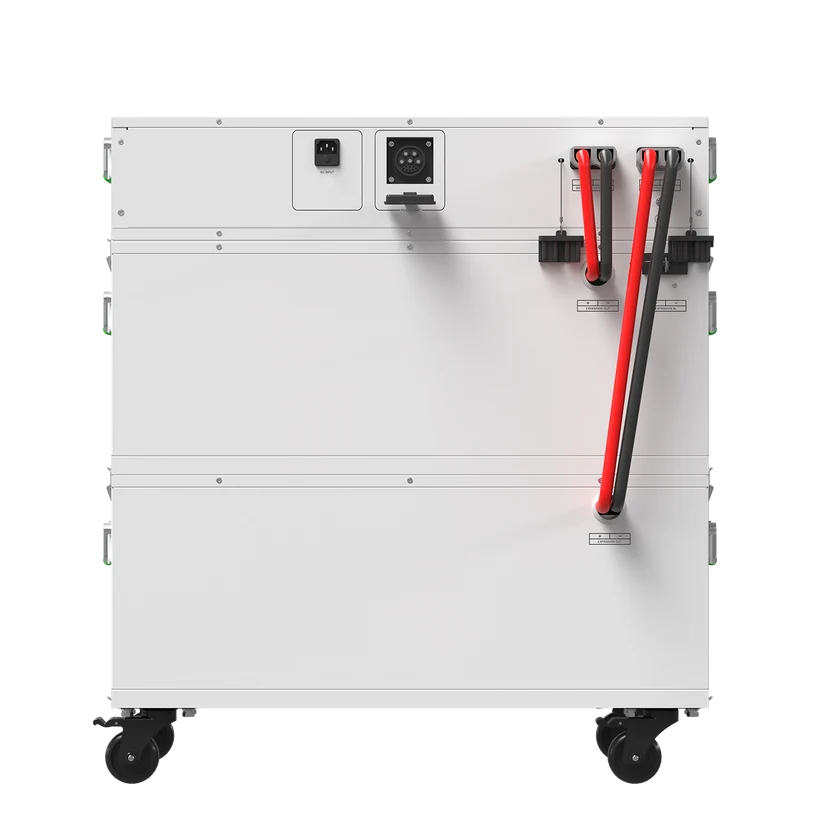

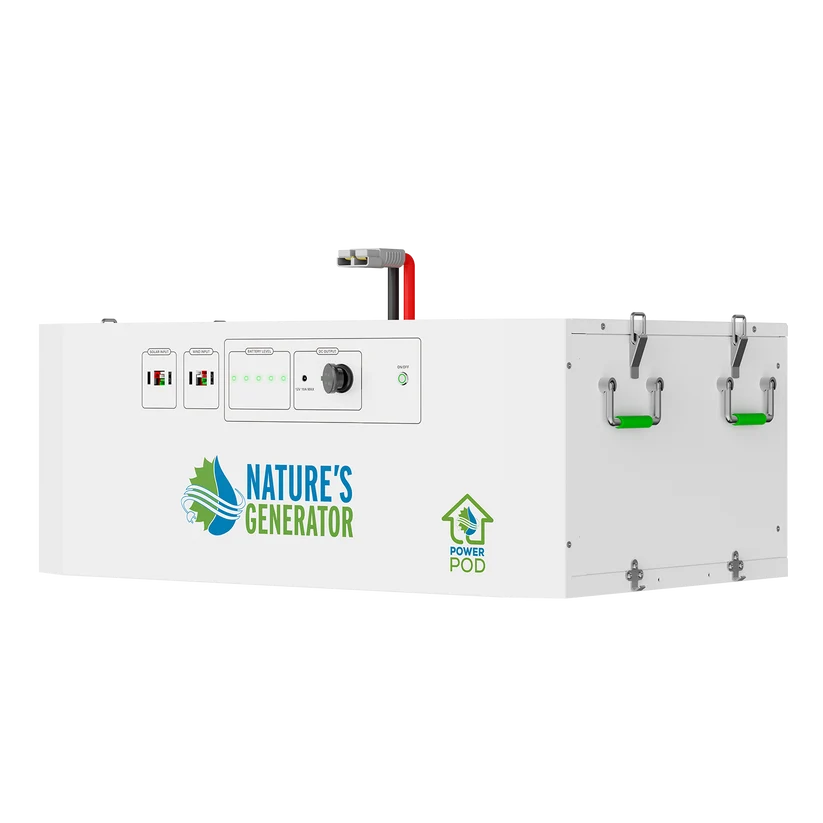

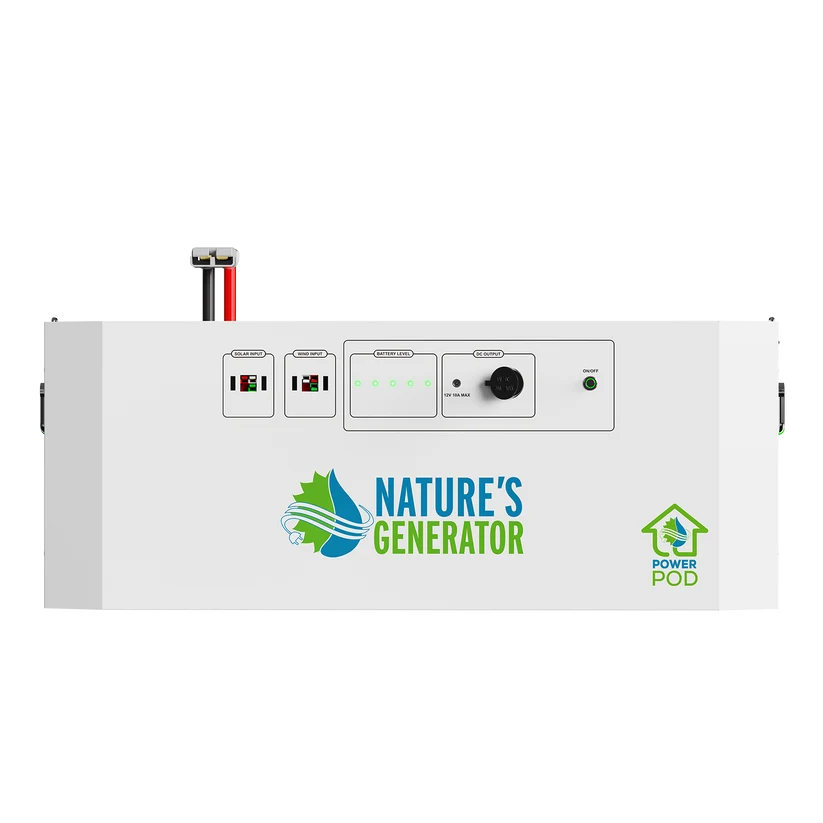

Powerhouse Power Pod

  • Battery Capacity: 48V 100Ah (4,800Wh)
  • Battery Chemistry: AGM sealed lead acid
  • Battery Self-Discharge: Recommended to recharge every 4 months
  • Solar Charger: 2,000W
  • Wind Charger: 1,000W
  • 12V Socket: 10A max
  • 12V Port: 10A max
  • 148V Port: 5A max
  • 12V Port: 10A max
  • Weight: 295 lbs (134 kg)
  • Operating Temperature: 32–104°F (0–40°C)
  • Storage Temperature: 23–111°F (-5–45°C)
  • Dimensions: 28 × 18 × 11 in. (720 × 466 × 281 mm)
  • Dimensions with Wheels: 28 × 18 × 15 in. (720 × 466 × 376 mm)

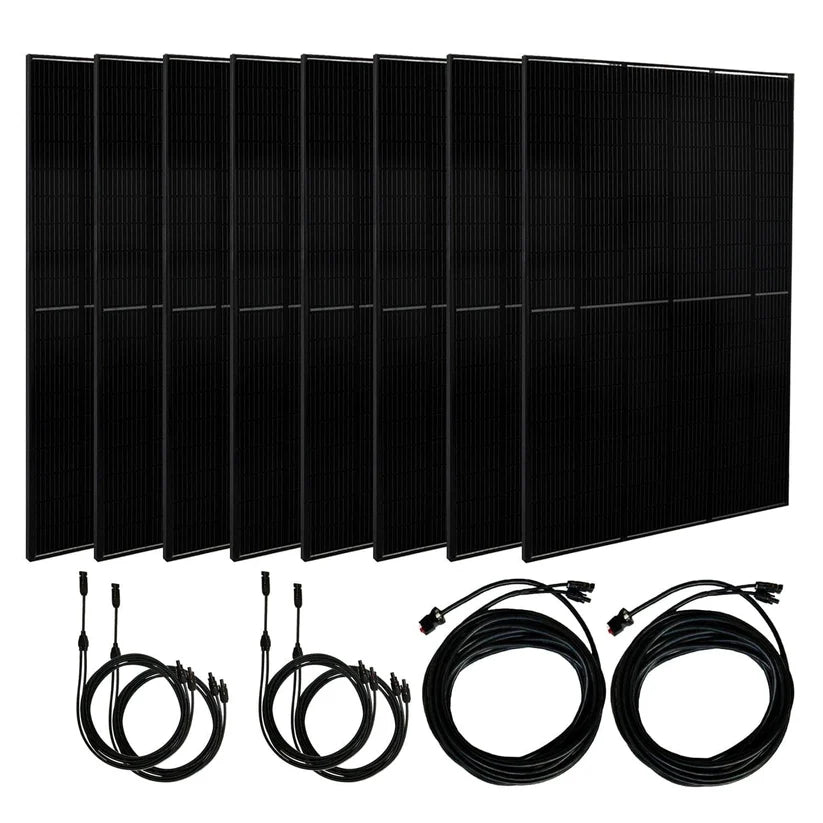

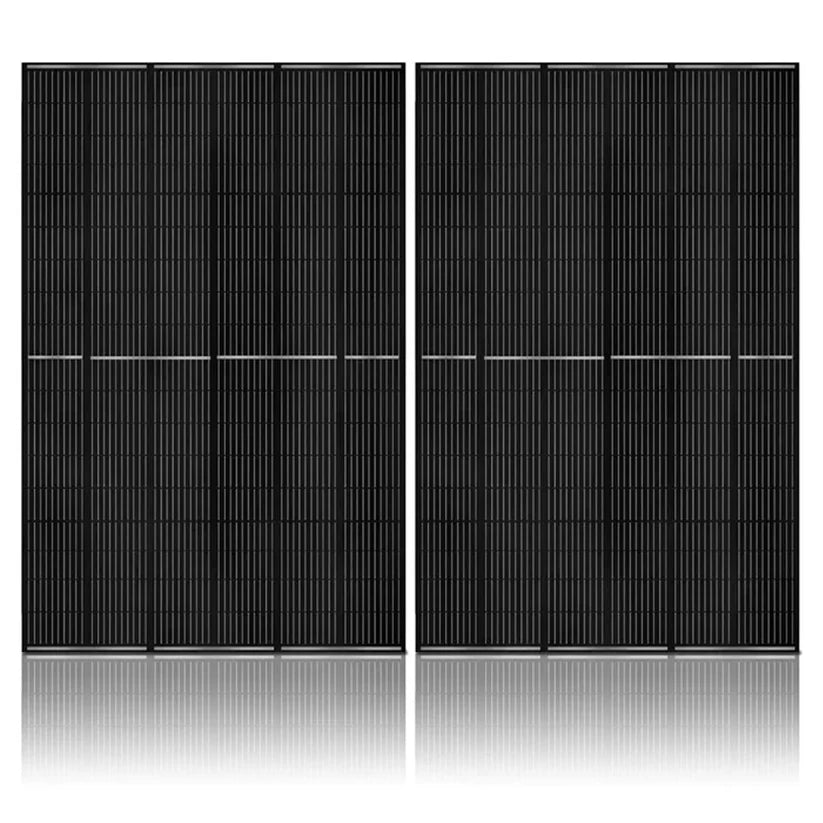

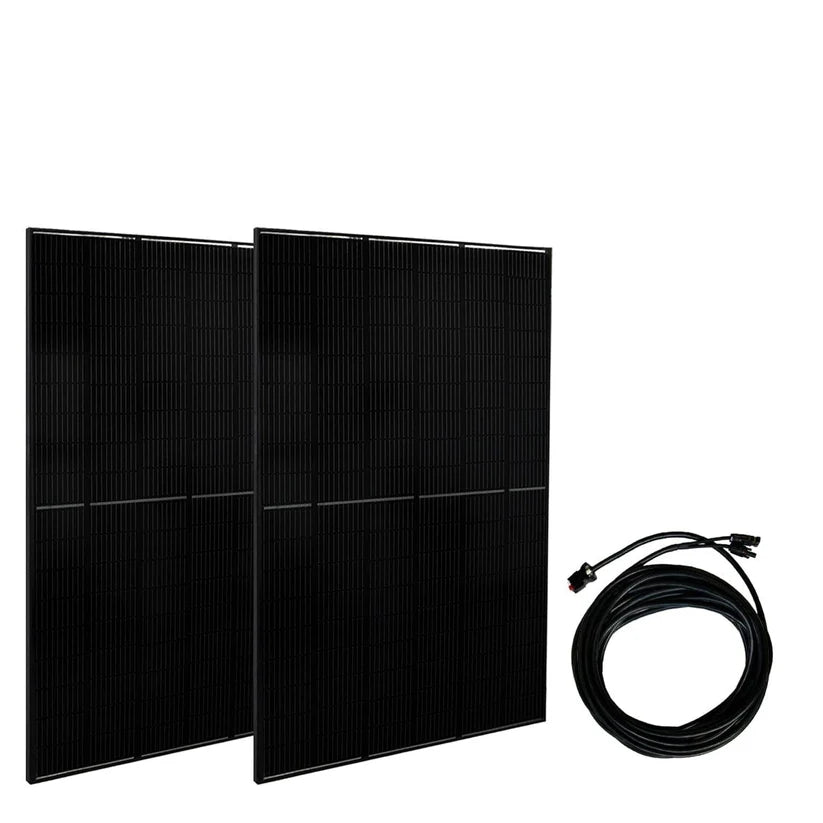

440W Rigid Bifacial Solar Panel

  • Maximum Power (Pmax): 440W
  • Maximum Power Voltage (Vmp): 32.30V
  • Maximum Power Current (Imp): 13.63A
  • Open-Circuit Voltage (Voc): 38.80V
  • Short-Circuit Current (Isc): 14.39A
  • Module Efficiency at STC: 22.53%
  • Dimensions: 1722 × 1134 × 30 mm (67.8 × 44.6 × 1.2 in.)
  • Cell Type: N-Type TOPCon, 182 × 91 mm
  • Number of Half-Cells: 108 (6 × 18)
  • Frame: Anodized aluminum alloy, all black
  • Weight: 24.5 kg (54 lbs)
  • Glass: 2.0 mm + 2.0 mm, high transmission, AR-coated heat-strengthened glass
  • Operating Temperature: -40°C to +85°C (-40°F to +185°F)
  • Junction Box: IP68 rated, connector compatible with MC4
  • Output Cables: 4 mm², 350 mm with connectors

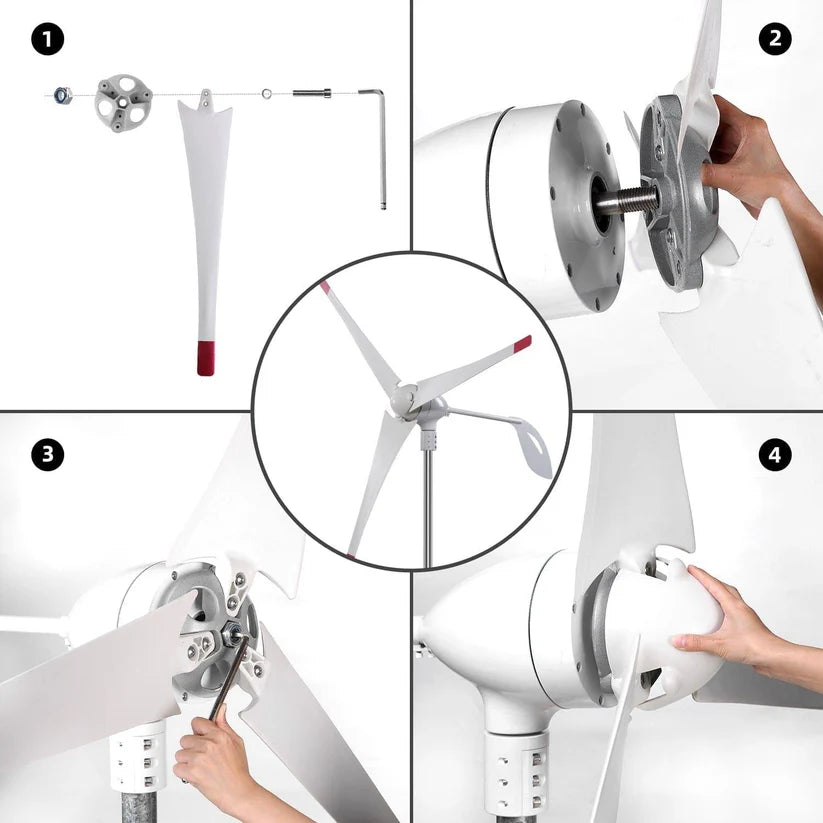

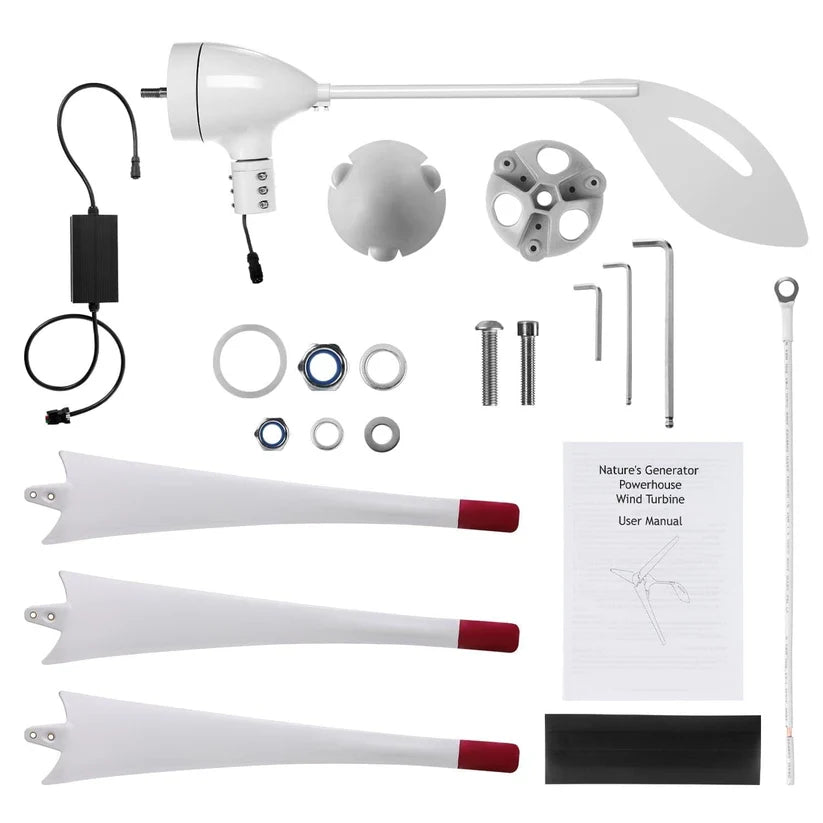

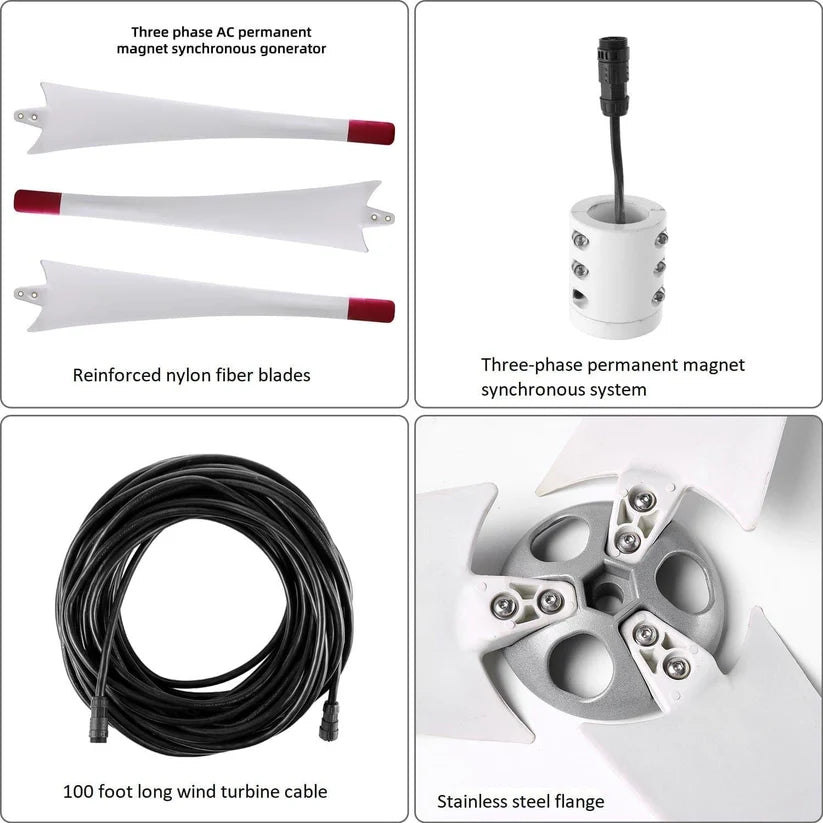

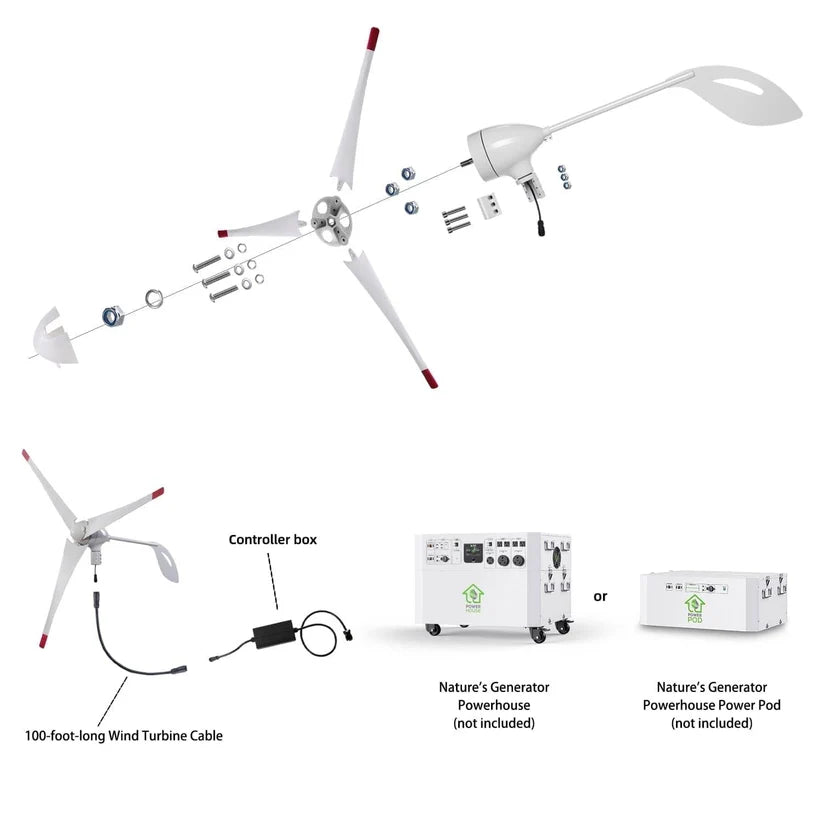

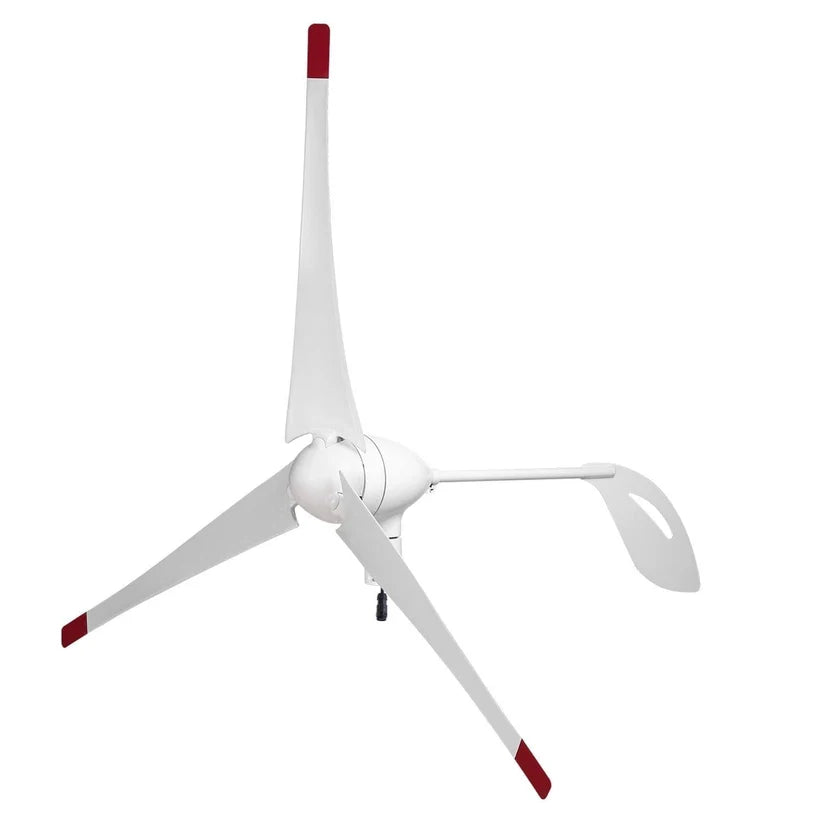

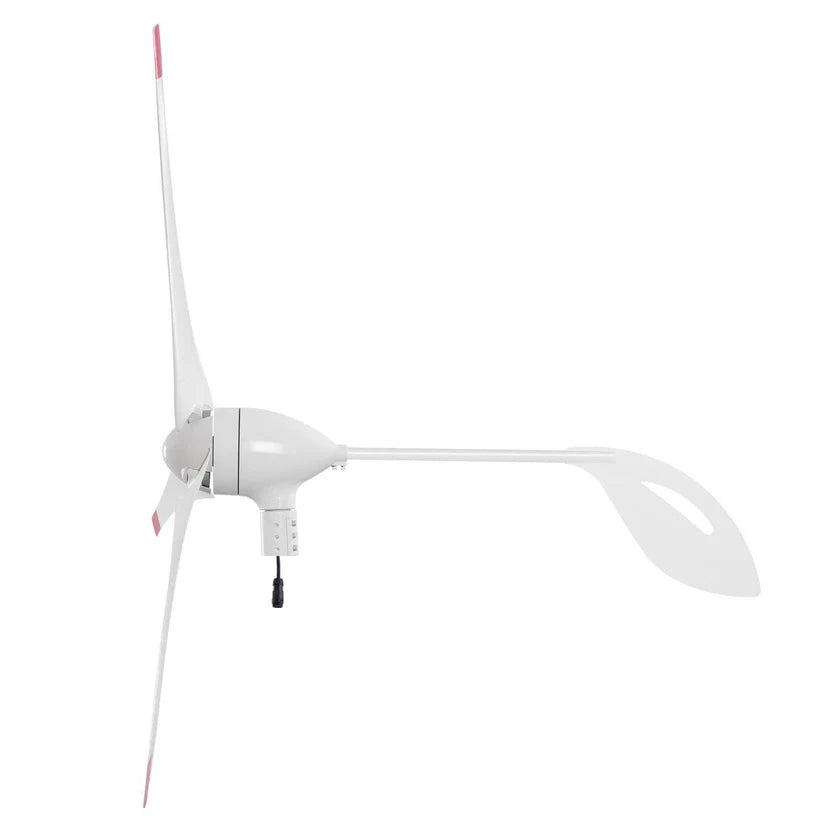

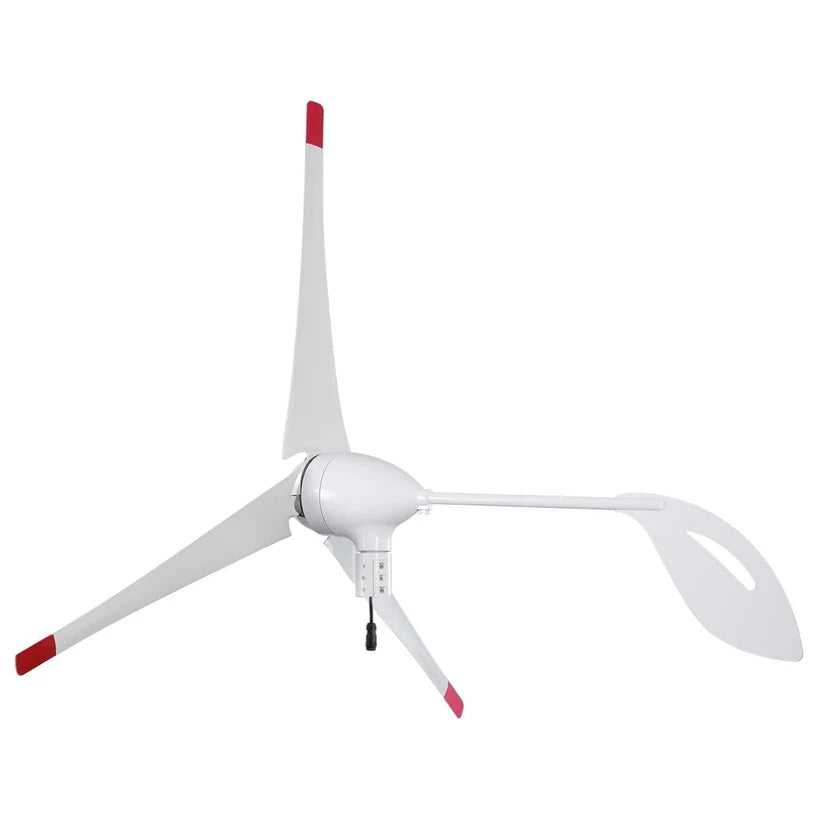

350W Wind Turbine

  • Rated Power: 350W @ 27 MPH
  • Maximum Wind Speed: 110 MPH
  • Wind Turbine Blades: Fiberglass nylon composite
  • Wind Turbine Body: Cast aluminum alloy with powder coating
  • Wind Turbine Cable: 12AWG pure copper cable

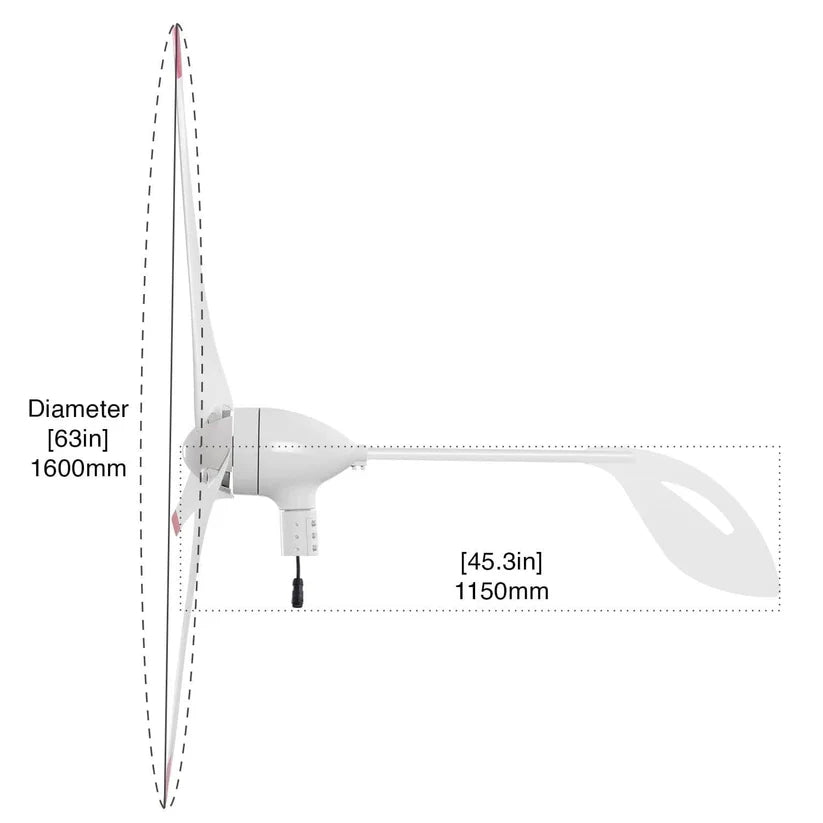

  • Rotor Diameter: 63 in. (1.6 m)
  • Weight: 37 lbs. (17 kg) wind turbine body
  • Certifications: CE, RoHS

Documents

440W Rigid Solar Panel Installation Guide
Powerhouse Gen 2 Specification Sheet
350W Wind Turbine User Guide
