Expandable LiFePO4 battery storage that extends MyGrid 10K runtime without complicated integration.
Overview

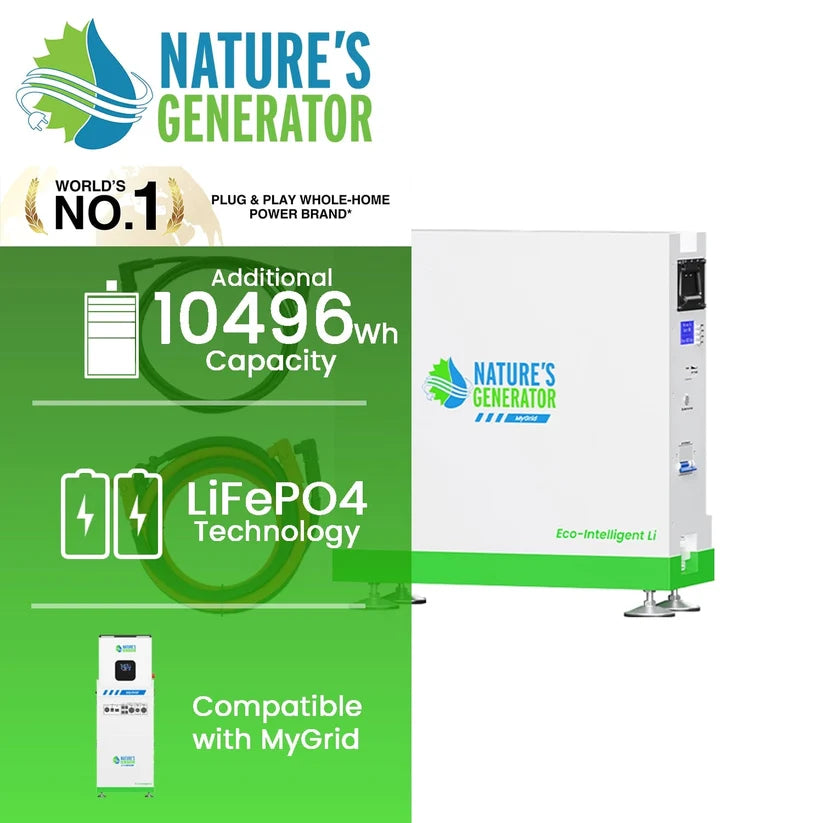

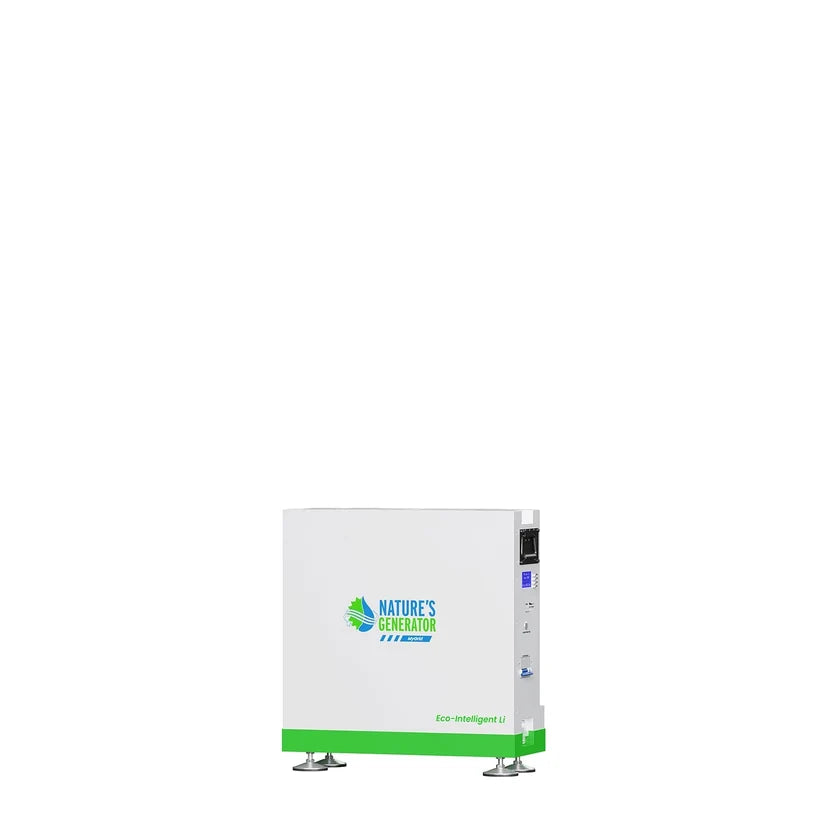

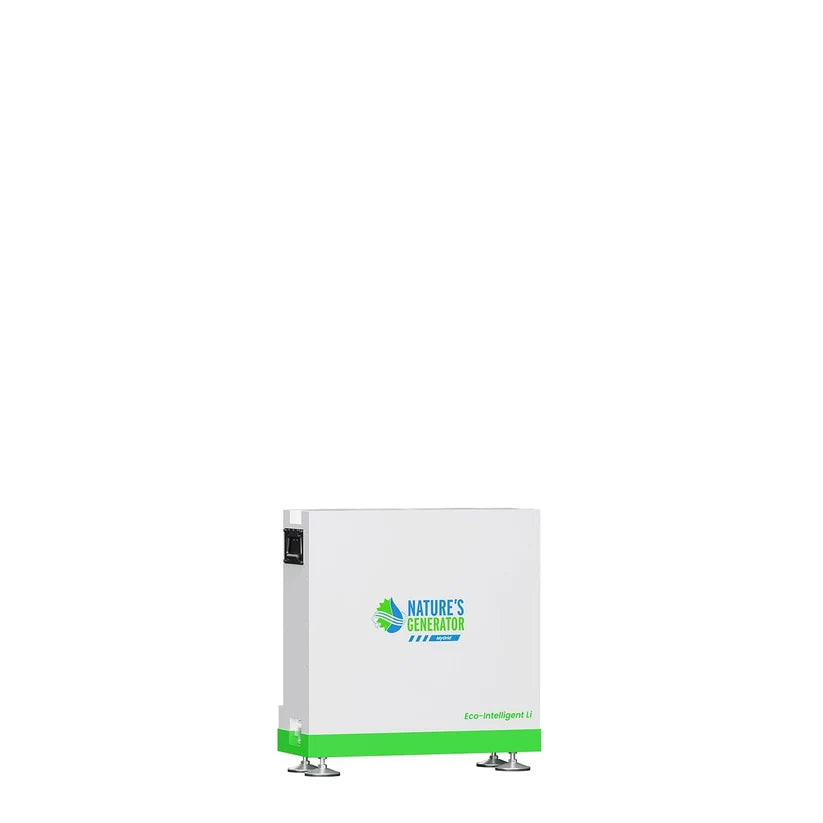

The MyGrid 10K Solar Battery is an expandable battery designed for use with the MyGrid 10K whole-home generator. It provides 10,496Wh of lithium iron phosphate energy storage and supports adding multiple batteries for greater total storage capacity.
Benefits
- Extends available backup runtime by adding additional battery storage to a MyGrid 10K system.
- Supports prolonged outages and extended off-grid use with expandable total capacity.
- Optimizes available installation space through flexible stacking configurations.
- Supports long-term battery use with LiFePO4 chemistry and a cycle life of more than 6,000 cycles.
- Simplifies expansion with included cables for connecting multiple batteries.
Features
- MyGrid 10K compatibility is designed for integration with the MyGrid 10K whole-home generator.
- Expandable battery capacity allows up to six additional batteries to be added to the system.
- Up to 73.4kWh total storage supports expanded energy storage when the maximum battery configuration is used.
- Three-battery stacking allows up to three batteries to be stacked in a single row.
- Integrated Battery Management System (BMS) monitors, controls, and displays battery status.
- LED display provides accessible battery status information.
- LiFePO4 battery chemistry uses lithium iron phosphate cells.
- Plug-and-play design supports simplified battery expansion.

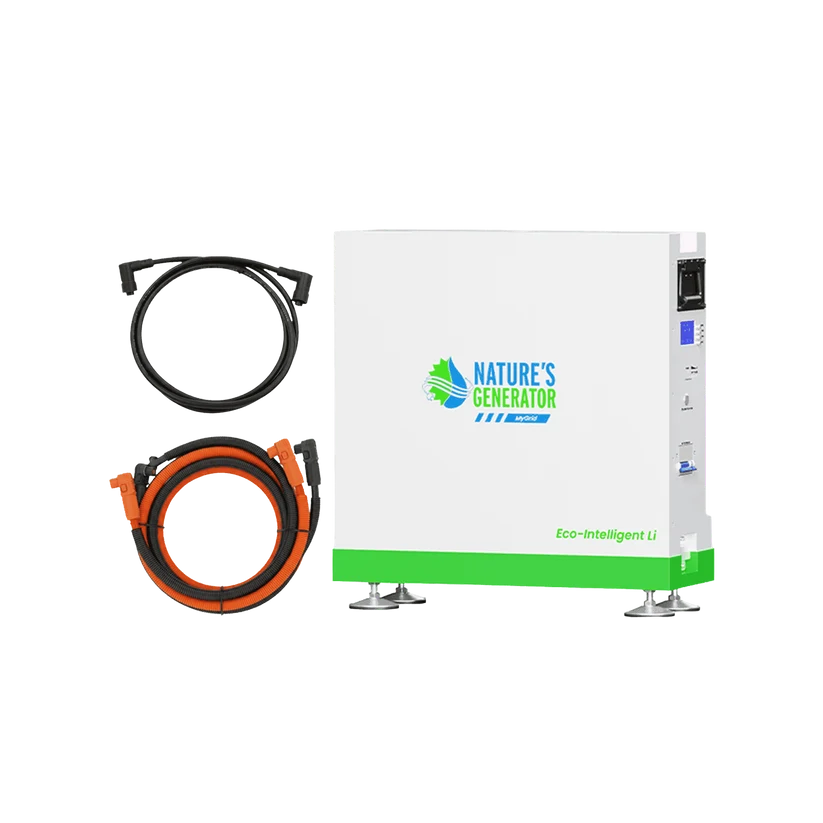

- Included expansion cables provide the connection components needed between multiple batteries.
Specifications
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Battery Capacity: 51.2V 205Ah (10,496Wh)
- Expandable System Capacity: Up to 73.4kWh
- Additional Batteries: Up to 6 additional batteries
- Maximum Stacking: 3 batteries in a single row
- Battery Cycle Life: >6,000 cycles
- Self-Discharge: Recommended recharging every 6 months
- Optimal Operating Temperature: 68–86°F (20–30°C)
- Storage Temperature: 14–113°F (-10–45°C)
- Battery Charging Temperature: 32–113°F (0–45°C)
- Battery Discharging Temperature: 14–113°F (-10–45°C)
- Warranty: 5-Year Limited Warranty
- Certification: ANSI/CAN/UL 1973
- Battery Dimensions: 21.8 × 8.5 × 23.4 in. (555.4 × 216 × 596 mm), not counting mounting bar
- Battery Weight: 213 lbs (96.6 kg)
Documents
MyGrid 10K Battery cETLus Certificate -ANSI/CAN/UL 1973
MyGrid 10K Solar Panel Connection Guide
MyGrid 10K Generator and Solar Battery User Guide
