A 10,000W whole-home power system that stores energy for reliable backup power, flexible charging, and greater energy independence.
Overview

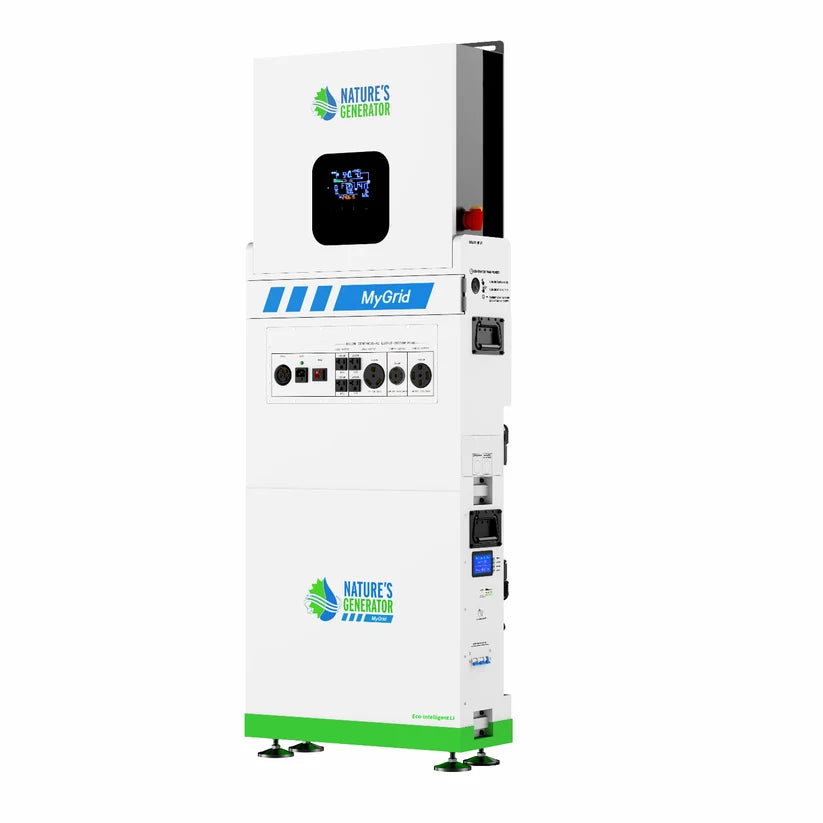

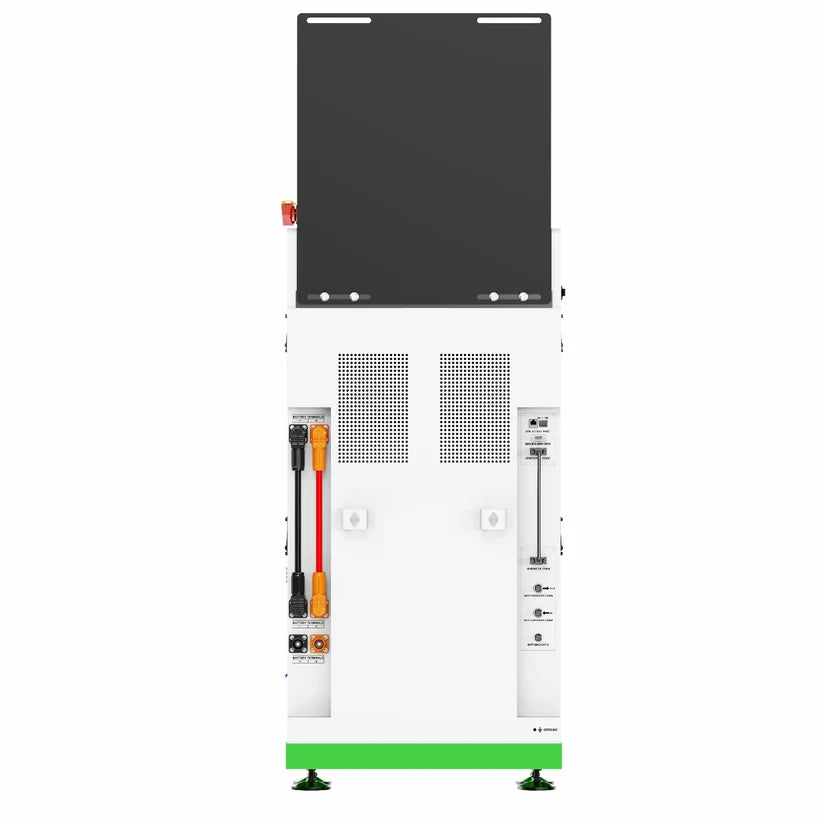

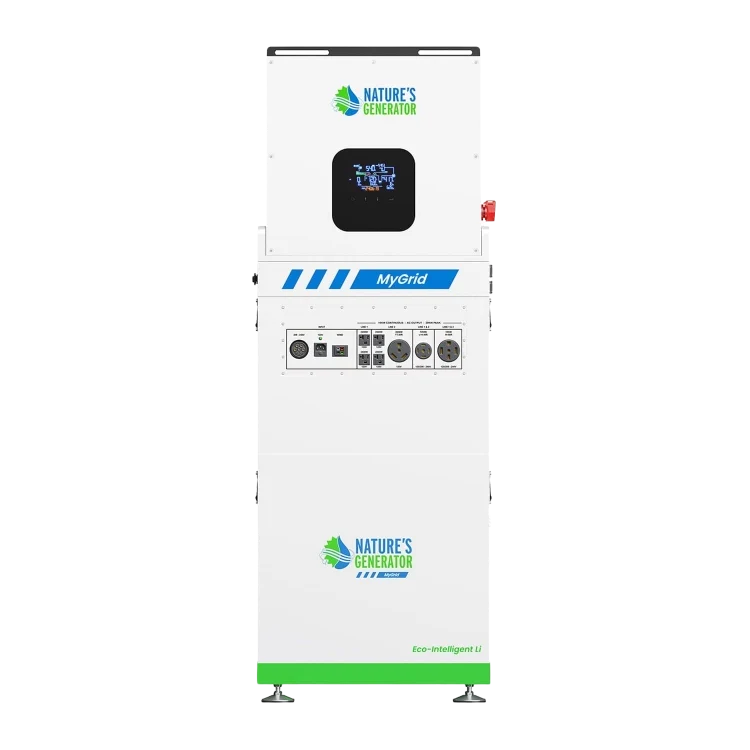

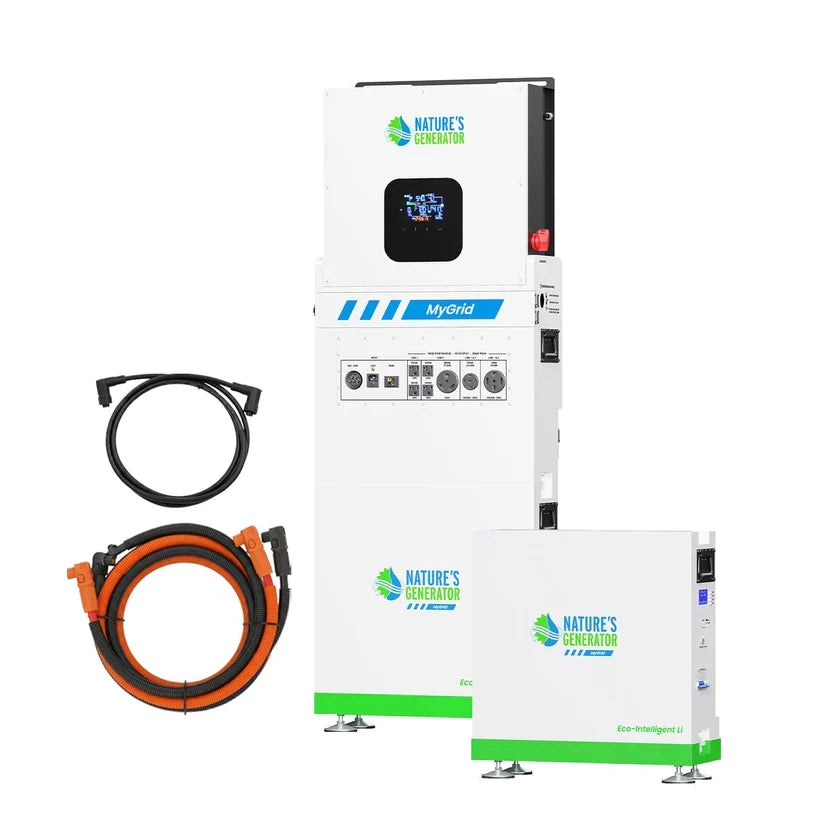

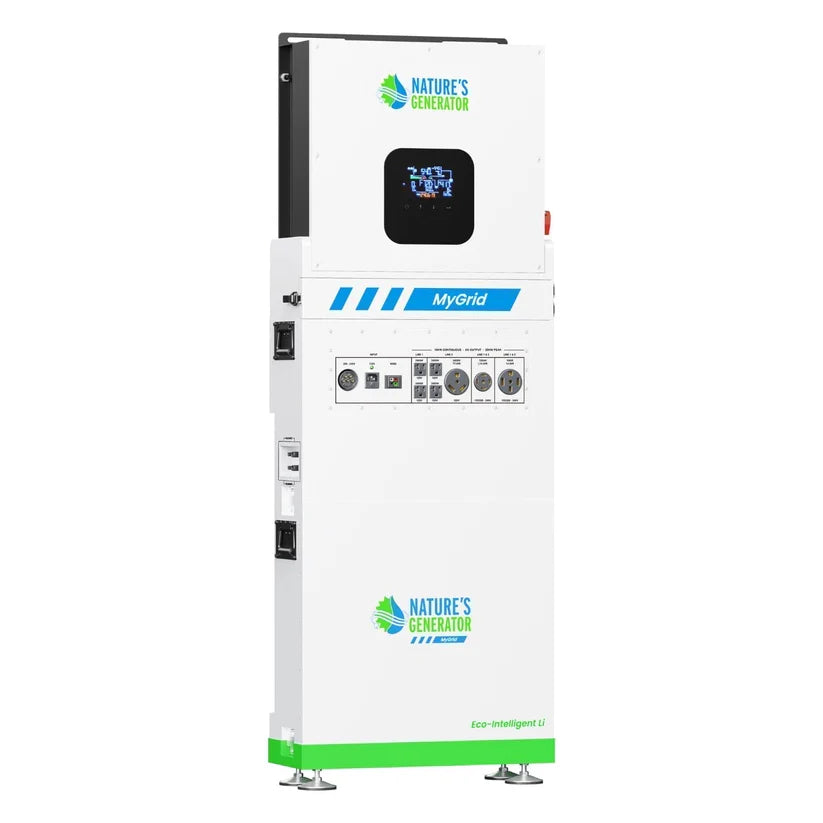

The MyGrid 10K Gen 2 is a whole-home energy storage system combining a 10,000W inverter with a 10,496Wh LiFePO4 battery. It supports grid, solar, wind, and generator charging while providing expandable power and battery capacity for backup, off-grid, and energy storage applications.
Benefits
- Reduces reliance on high-rate grid electricity by storing energy for use during higher-cost periods.
- Provides dependable backup power for outages and off-grid applications.
- Supports long-term energy storage with a LiFePO4 battery rated for more than 6,000 cycles.
- Allows the system to grow with energy needs through expandable power, battery, and solar capacity.
- Provides flexible energy sourcing through solar, wind, AC, and external generator charging.
- Minimizes downtime with charging capability of up to 80% in approximately 2 hours under supported charging conditions.
- Supports easier deployment with a plug-and-play design suitable for permanent or temporary installations.
Features
- 10,000W continuous output provides high-capacity power for whole-home applications.
- 20,000W expandable continuous output allows two units to be combined for increased power capacity.
- 10,496Wh LiFePO4 battery provides integrated energy storage.
- 73.4kWh expandable battery capacity supports up to seven batteries.
- 12,000W solar charging supports high-capacity solar integration through dual MPPT solar charging.
- 350W wind charging provides an additional renewable charging option.
- AC coupling and Rapid Shutdown support allow compatible rooftop solar systems to continue operating during grid outages while supporting solar safety requirements.
- Flexible voltage charging supports 120V, 120/240V, and 120/208V charging configurations.
- Automatic switching under 20ms helps transition between power sources quickly.
- Pure sine wave output provides a clean AC power waveform.
- Integrated Battery Management System (BMS) monitors and manages battery status for system operation.
- LED display provides accessible system and battery status information.
- Multiple output and input ports support a range of power connections and charging sources.
- UL 1741 and UL 1973 certifications provide documented safety certifications for the inverter and battery.
Specifications
- Continuous Output Power: 10,000W
- Expandable Continuous Peak Power: 20,000W
- Output Peak Power: 20,000W
- Expandable Peak Power: 40,000W
- Output Voltage: 120V/240V split phase or 120V/208V 2 of 3 phases
- Output Frequency: 60Hz
- Output Power Form: Pure sine wave
- Auto Switching: <20ms
- Battery Capacity: 51.2V 205Ah (10,496Wh)
- Expandable Battery Capacity: 73.4kWh (7 batteries)
- Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
- Battery Cycle Life: >6,000 cycles
- Self-Discharge: Recommended recharging every 6 months
- 120Vac Charger: 1,000W
- 208Vac or 240Vac Charger: 4,500W
- Wind Charger: 350W
- Solar Charger: 12,000W, 120Vdc–550Vdc
- Solar Charge Mode: 2 × MPPT
- Output Ports: 4 × NEMA 5-20R, 1 × NEMA TT-30R, 1 × NEMA L14-30R, 1 × NEMA 14-50R, 1 × Expansion Port
- Input Ports: 2 × Solar Input, 1 × Wind Input, 1 × 120Vac Input, 1 × 208Vac or 240Vac Input, 1 × Alternate 208Vac or 240Vac Input
- Optimal Operating Temperature: 68–86°F (20–30°C)
- Storage Temperature: 14–113°F (-10–45°C)
- Battery Charging Temperature: 32–113°F (0–45°C)
- Battery Discharging Temperature: 14–113°F (-10–45°C)
- Warranty: 5-Year Limited Warranty
- Inverter Certification: ANSI/CAN/UL 1741
- Battery Certification: ANSI/CAN/UL 1973
- Generator Dimensions: 21.8 x 8.5 x 38.5 in. (555.4 x 216 x 980 mm), excluding mounting bar
- Generator Weight: 152 lbs (69 kg)

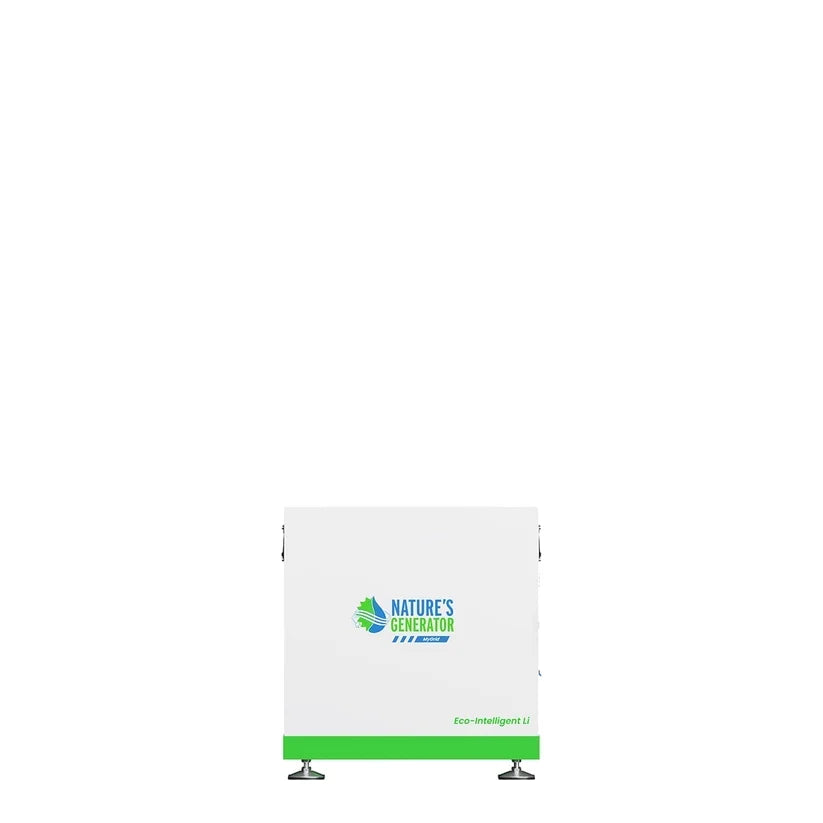

- Battery Dimensions: 21.8 x 8.5 x 23.4 in. (555.4 x 216 x 596 mm), excluding mounting bar
- Battery Weight: 213 lbs (96.6 kg)
Documents
MyGrid 10k Specification Sheet
MyGrid 10K Generator and Battery User Manual
MyGrid 10K Inverter Certificate of Compliance ANSI/CAN/UL 1741
MyGrid 10K Battery cETLus Certificate ANSI/CAN/UL 1973
MyGrid 10K Solar Panel Connection Guide
