A complete solar power system that combines whole-home energy storage with high-efficiency bifacial solar panels for reliable backup and renewable energy generation.
Overview

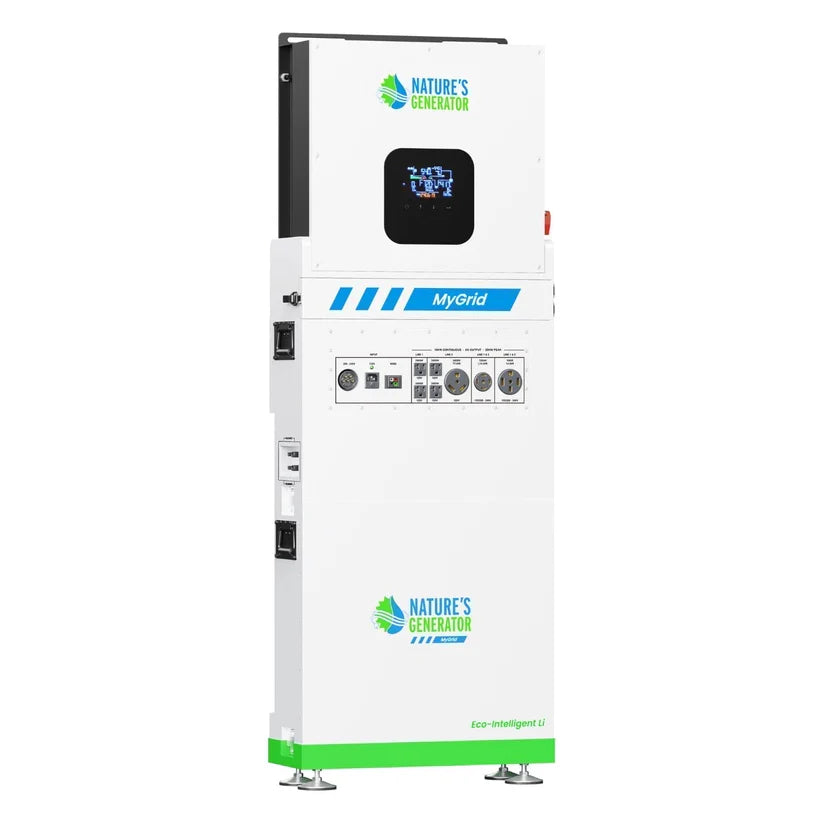

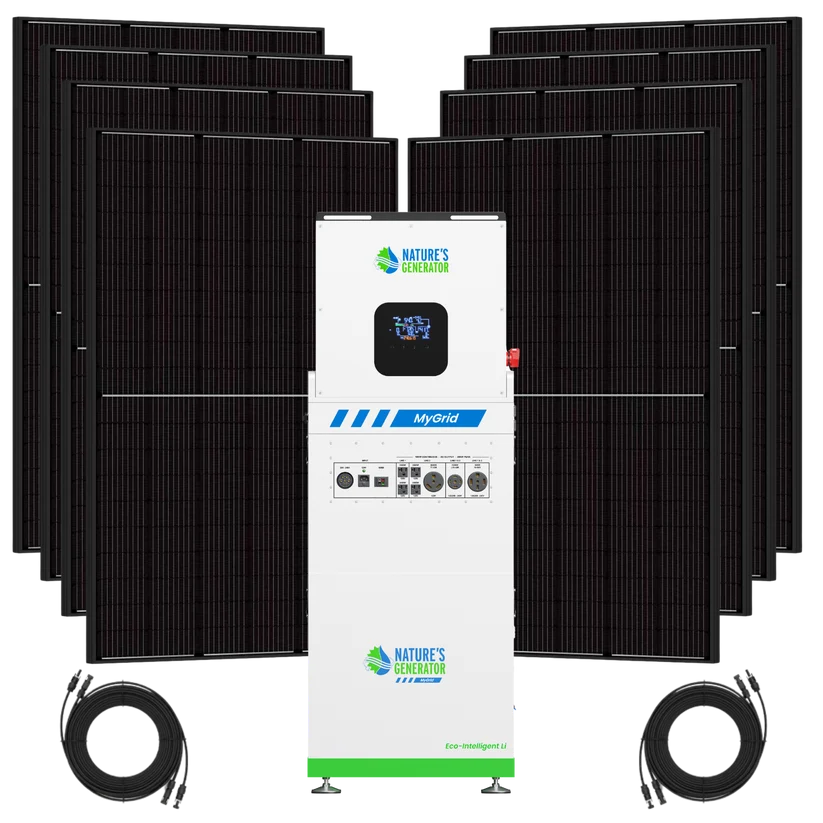

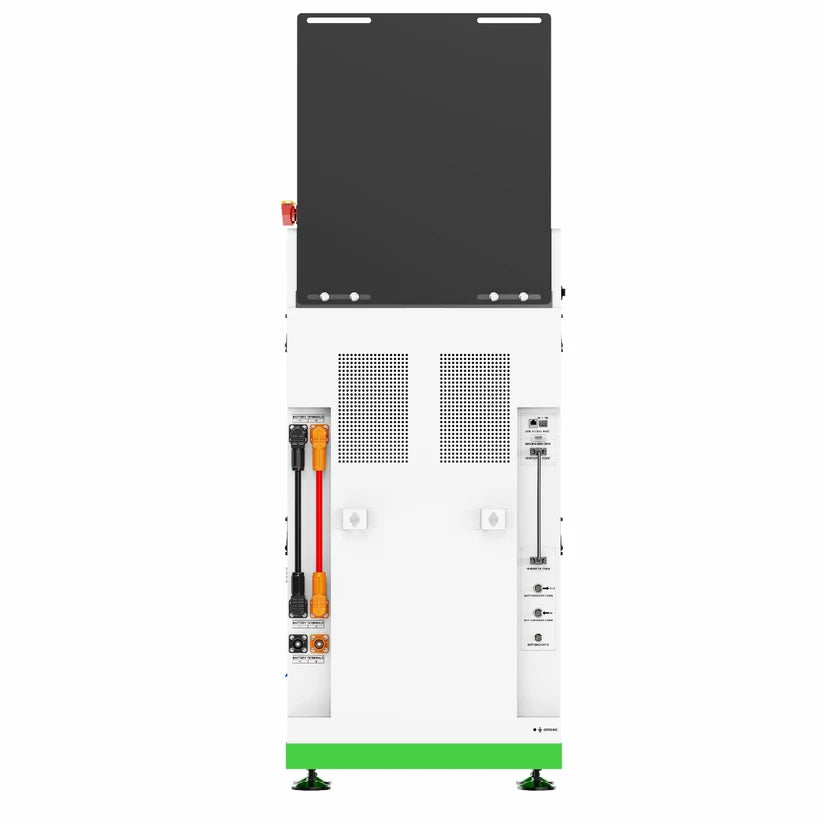

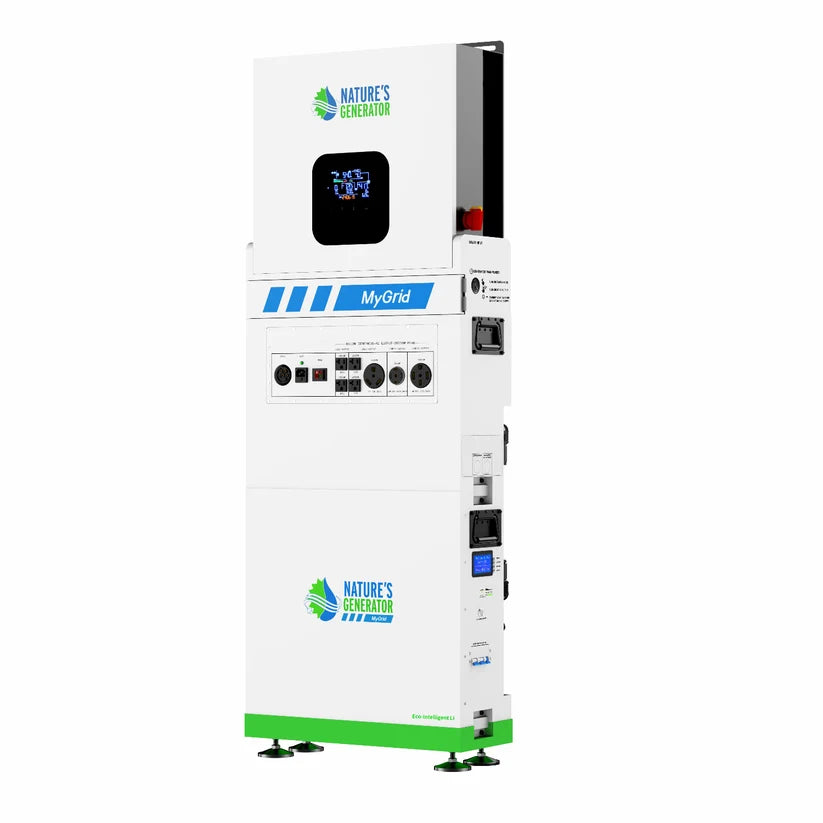

The MyGrid 10K Gen 2 Solar Power Bundle combines the MyGrid 10K Gen 2, MyGrid Solar Battery, and 440W rigid bifacial solar panels into one integrated energy system. It is designed for homeowners and other applications requiring whole-home backup power, solar energy storage, and flexible charging options.
Benefits
- Reduces reliance on grid electricity by storing solar or off-peak energy for later use.
- Provides whole-home backup power with 10,000W of continuous output and 10,496Wh of battery capacity.
- Supports expanding energy requirements by combining two units and adding additional battery and solar capacity.
- Provides multiple charging options through solar, wind, AC, and external fuel generators.
- Helps maintain compatible rooftop solar operation during grid outages through AC coupling and Rapid Shutdown support.
- Minimizes downtime with charging capability of up to 80% in approximately 2 hours under supported conditions.
- Supports flexible installation with a plug-and-play system designed for permanent or temporary applications.
Features
- 10,000W continuous output provides high-capacity power for whole-home applications.
- 20,000W expandable continuous output allows two units to be combined for increased system capacity.
- 10,496Wh LiFePO4 battery provides integrated energy storage for backup and renewable energy applications.

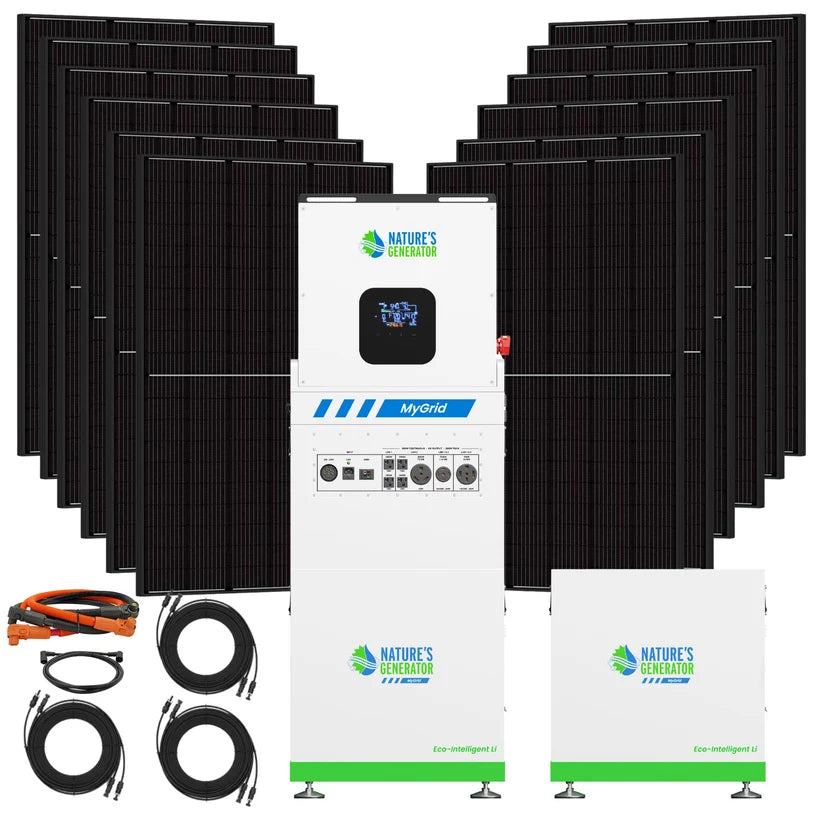

- 73.4kWh expandable battery capacity supports up to seven batteries.
- 12,000W solar charging supports high-capacity solar integration through dual MPPT charging.
- 440W rigid bifacial solar panels provide solar generation using N-Type TOPCon cells with a 22.53% module efficiency at STC.
- 350W wind charging provides an additional renewable charging option.
- AC coupling and Rapid Shutdown support allow compatible rooftop solar systems to continue operating during grid outages.
- Flexible voltage support accommodates 120V, 120/240V, and 120/208V charging and discharging configurations.
- Multiple charging sources support solar, wind, AC, and external fuel generator inputs.
- Automatic switching under 20ms enables rapid transition between power sources.
- Pure sine wave output provides the specified AC power waveform.
- Integrated Battery Management System (BMS) monitors and manages battery operation.
- UL 1741-certified inverter and UL 1973-certified battery provide documented safety certifications.
- IP68-rated junction box provides the specified protection rating for the solar panel connection system.
Specifications
- Continuous Output Power: 10,000W
- Expandable Continuous Peak Power: 20,000W
- Output Peak Power: 20,000W
- Expandable Peak Power: 40,000W
- Output Voltage: 120V/240V split phase or 120V/208V 2 of 3 phases
- Output Frequency: 60Hz
- Output Power Form: Pure sine wave
- Auto Switching: <20ms
- Battery Capacity: 51.2V 205Ah (10,496Wh)
- Expandable Battery Capacity: 73.4kWh (7 batteries)
- Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
- Battery Cycle Life: >6,000 cycles
- Battery Self-Discharge: Recommended recharging every 6 months
- 120Vac Charger: 1,000W
- 208Vac or 240Vac Charger: 4,500W
- Wind Charger: 350W
- Solar Charger: 12,000W, 120Vdc–550Vdc
- Solar Charge Mode: 2 × MPPT
- Output Ports: 4 × NEMA 5-20R outlets, 1 × NEMA TT-30R outlet, 1 × NEMA L14-30R outlet, 1 × NEMA 14-50R outlet, 1 × expansion port
- Input Ports: 2 × solar input ports, 1 × wind input port, 1 × 120Vac input port, 1 × 208Vac or 240Vac input port, 1 × alternate 208Vac or 240Vac input port

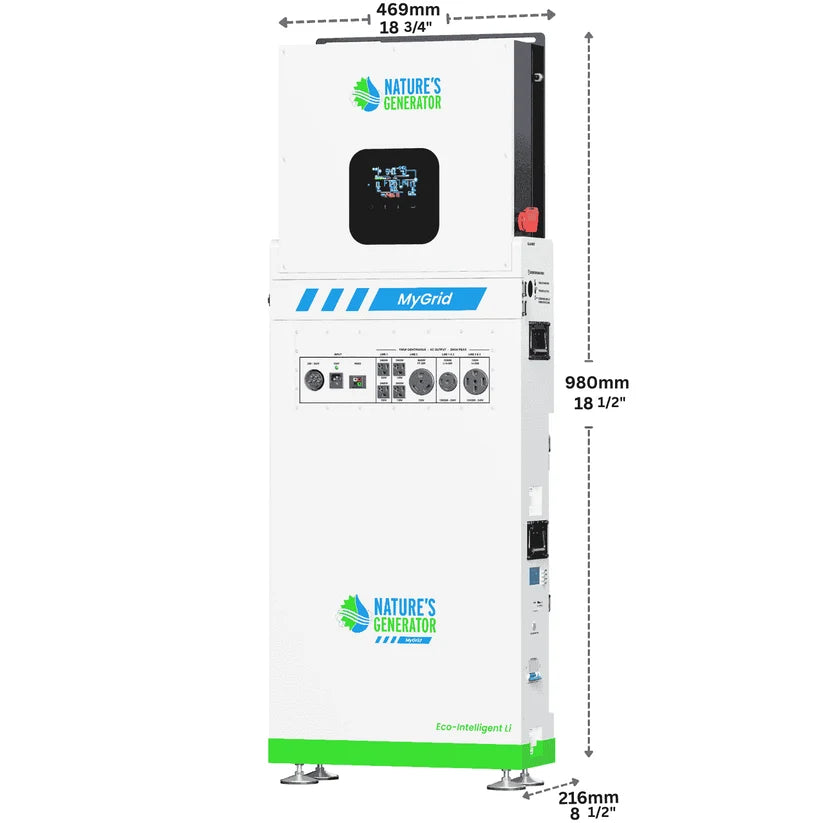

- Generator Dimensions: 21.8 × 8.5 × 38.5 in. (555.4 × 216 × 980 mm), not counting mounting bar
- Generator Weight: 152 lbs (69 kg)

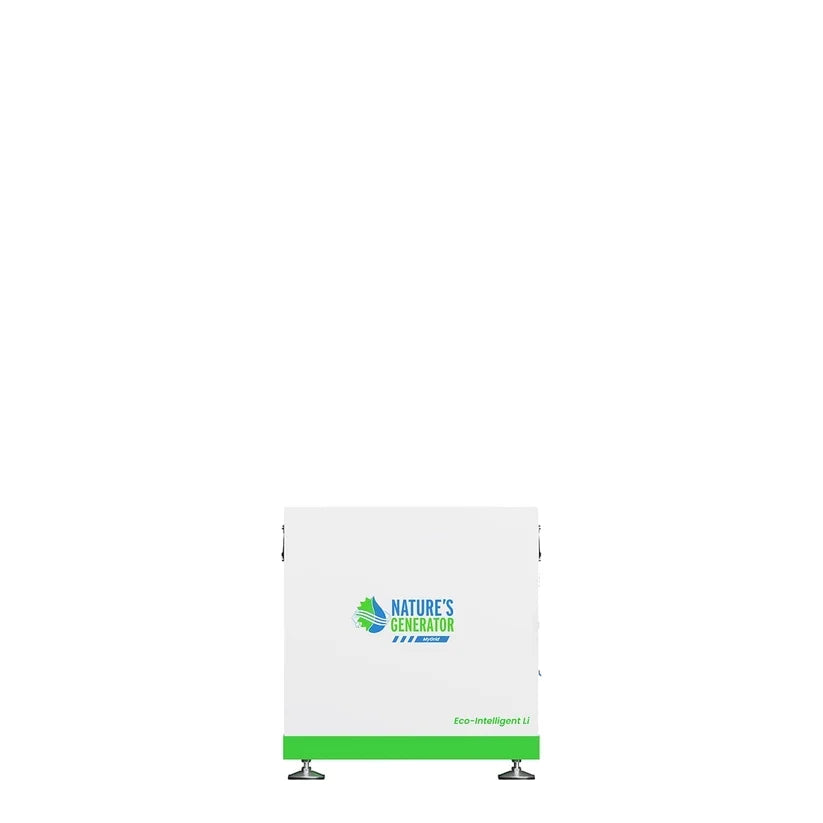

- Battery Dimensions: 21.8 × 8.5 × 23.4 in. (555.4 × 216 × 596 mm), not counting mounting bar
- Battery Weight: 213 lbs (96.6 kg)
- Optimal Operating Temperature: 68–86°F (20–30°C)
- Storage Temperature: 14–113°F (-10–45°C)
- Battery Charging Temperature: 32–113°F (0–45°C)
- Battery Discharging Temperature: 14–113°F (-10–45°C)
- Warranty: 5-Year Limited Warranty
- Inverter Certification: ANSI/CAN/UL 1741
- Battery Certification: ANSI/CAN/UL 1973

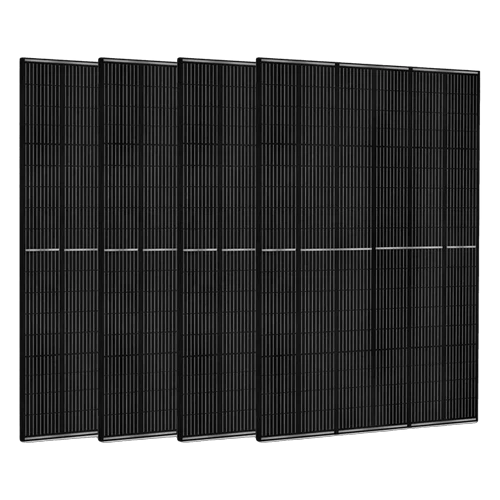

440W Rigid Bifacial Solar Panel
- Maximum Power (Pmax): 440W
- Maximum Power Voltage (Vmp): 32.30V
- Maximum Power Current (Imp): 13.63A
- Open-Circuit Voltage (Voc): 38.80V
- Short-Circuit Current (Isc): 14.39A
- Module Efficiency at STC: 22.53%
- Dimensions: 1722 × 1134 × 30 mm (67.8 × 44.6 × 1.2 in.)
- Cell Type: N-Type TOPCon, 182 × 91 mm
- Number of Half-Cells: 108 (6 × 18)
- Frame: Anodized aluminum alloy, all black
- Panel Weight: 24.5 kg (54 lbs)
- Glass: 2.0 mm + 2.0 mm, high-transmission, AR-coated, heat-strengthened glass
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Junction Box: IP68-rated, MC4 connector compatible
- Output Cables: 4 mm², 350 mm, with connectors
Documents
MyGrid 10k Specification Sheet
MyGrid 10K Generator and Battery User Manual
MyGrid 10K Inverter Certificate of Compliance - ANSI/CAN/UL 1741
MyGrid 10K Battery cETLus Certificate -ANSI/CAN/UL 1973
MyGrid 10K Solar Panel Connection Guide
- Regular price
- $7,999.99
