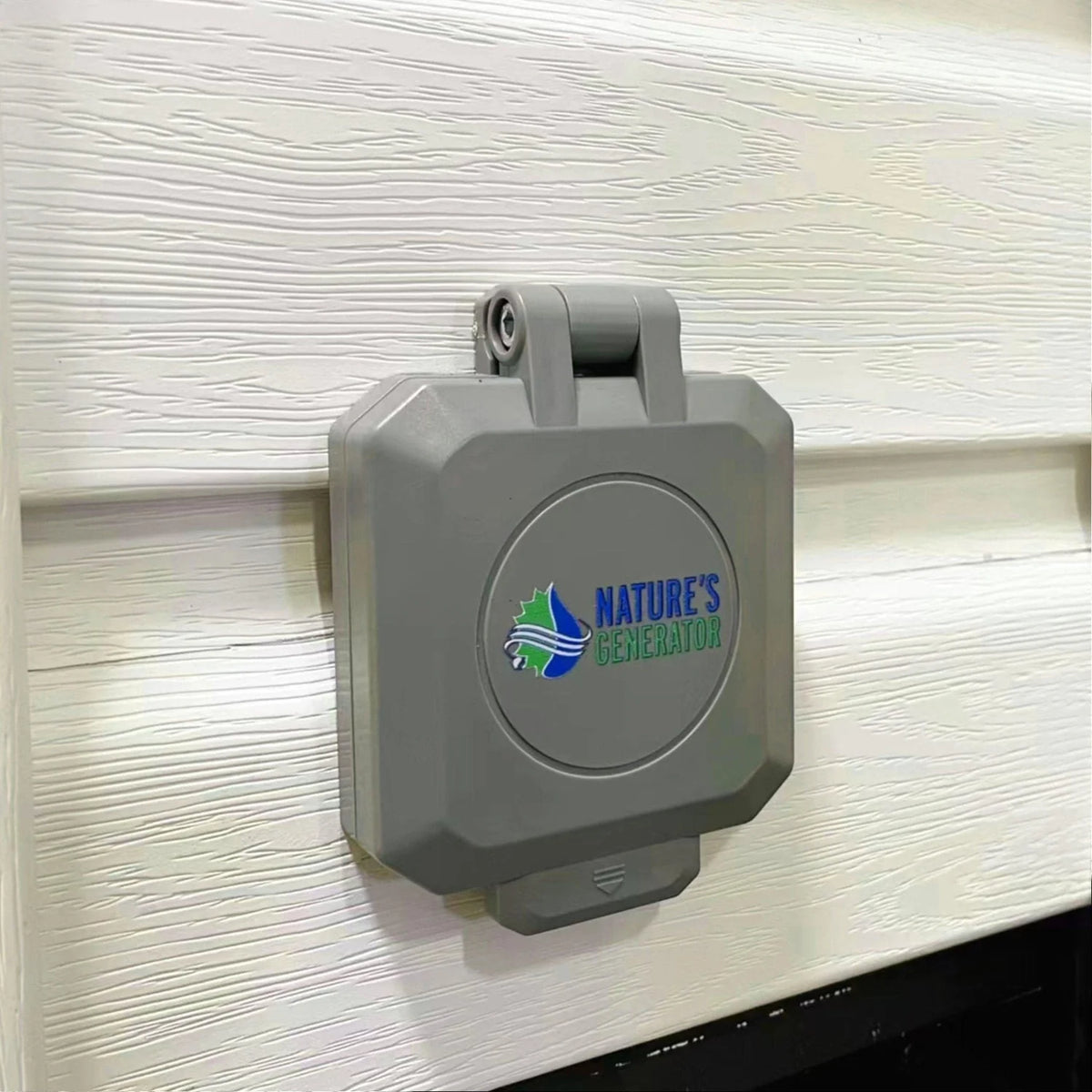

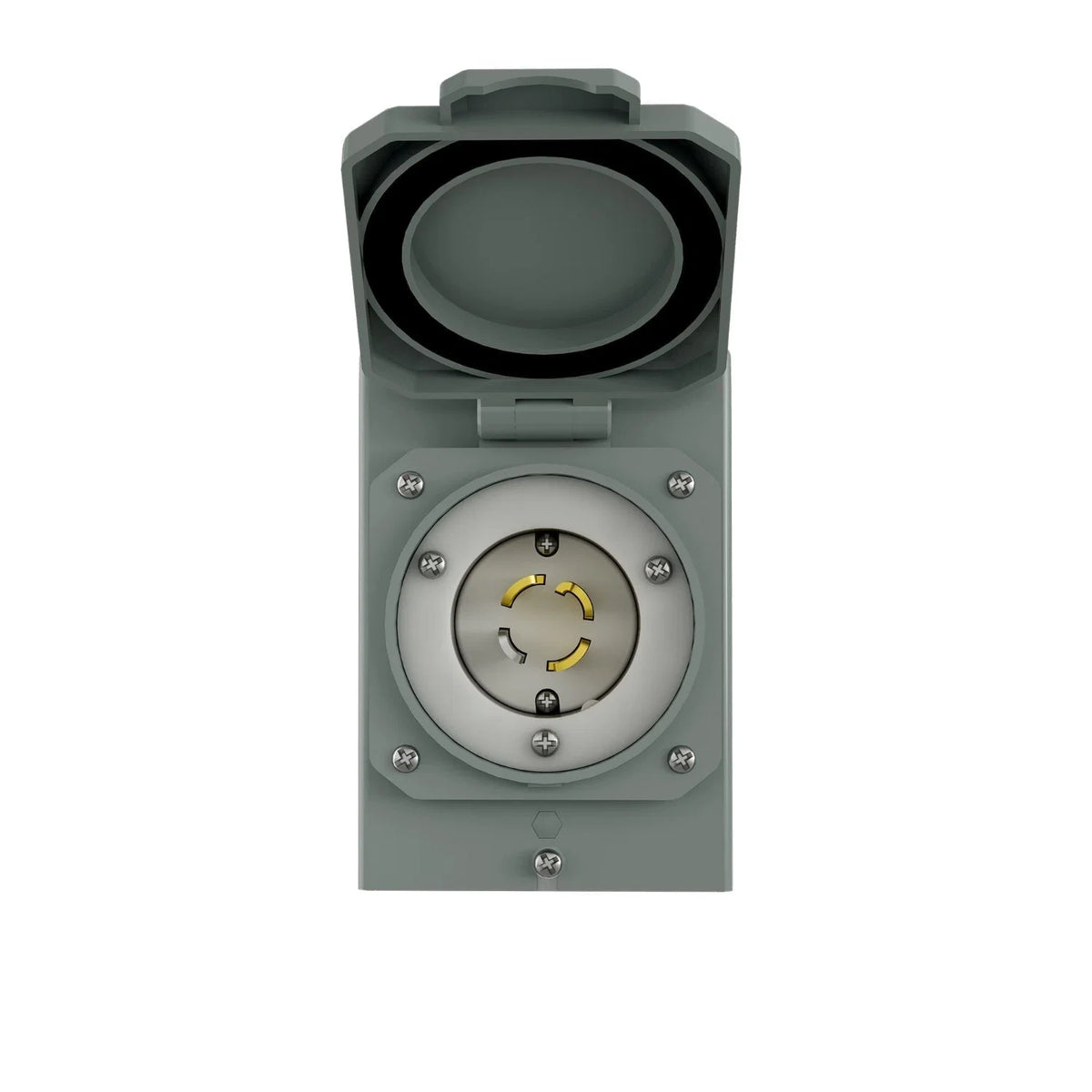

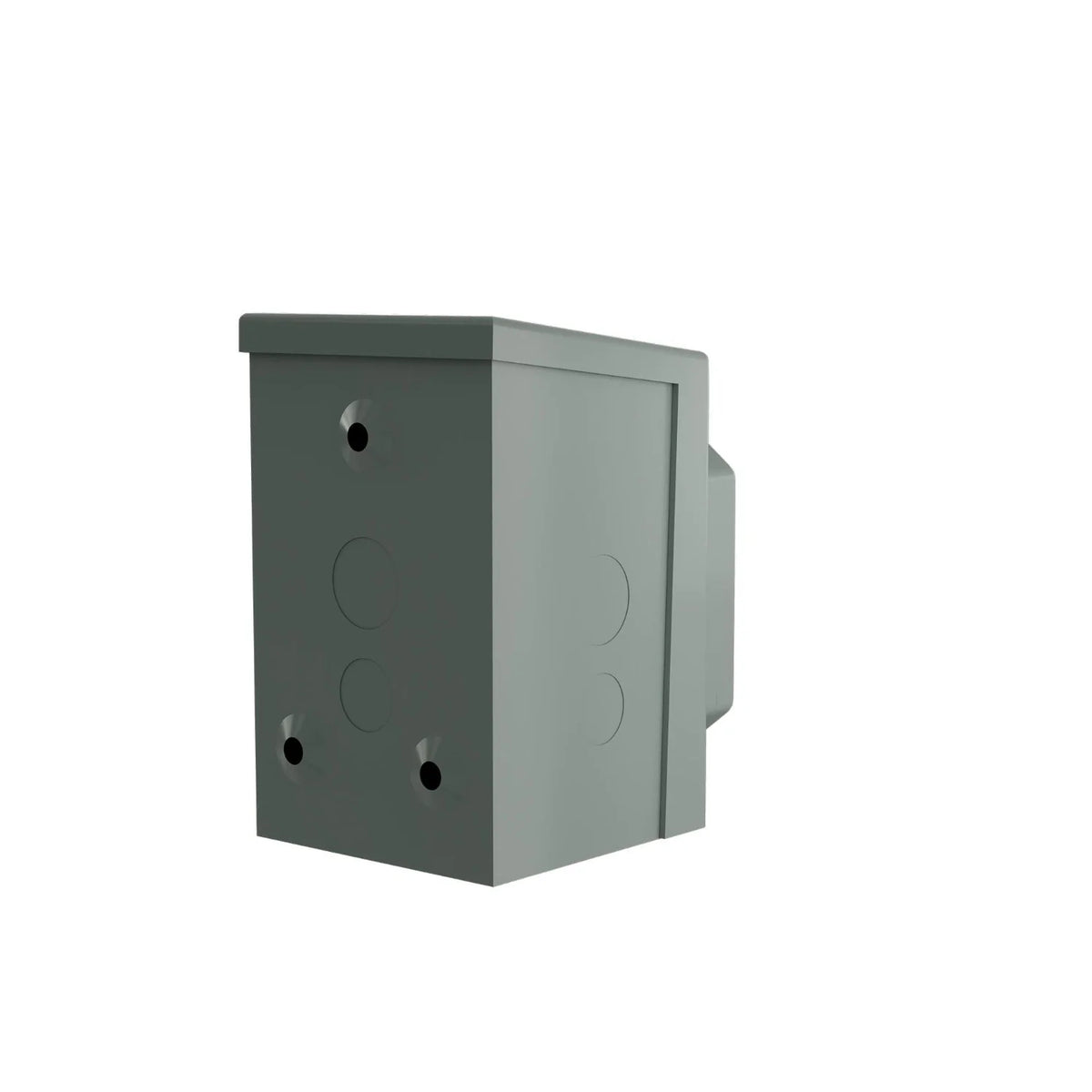

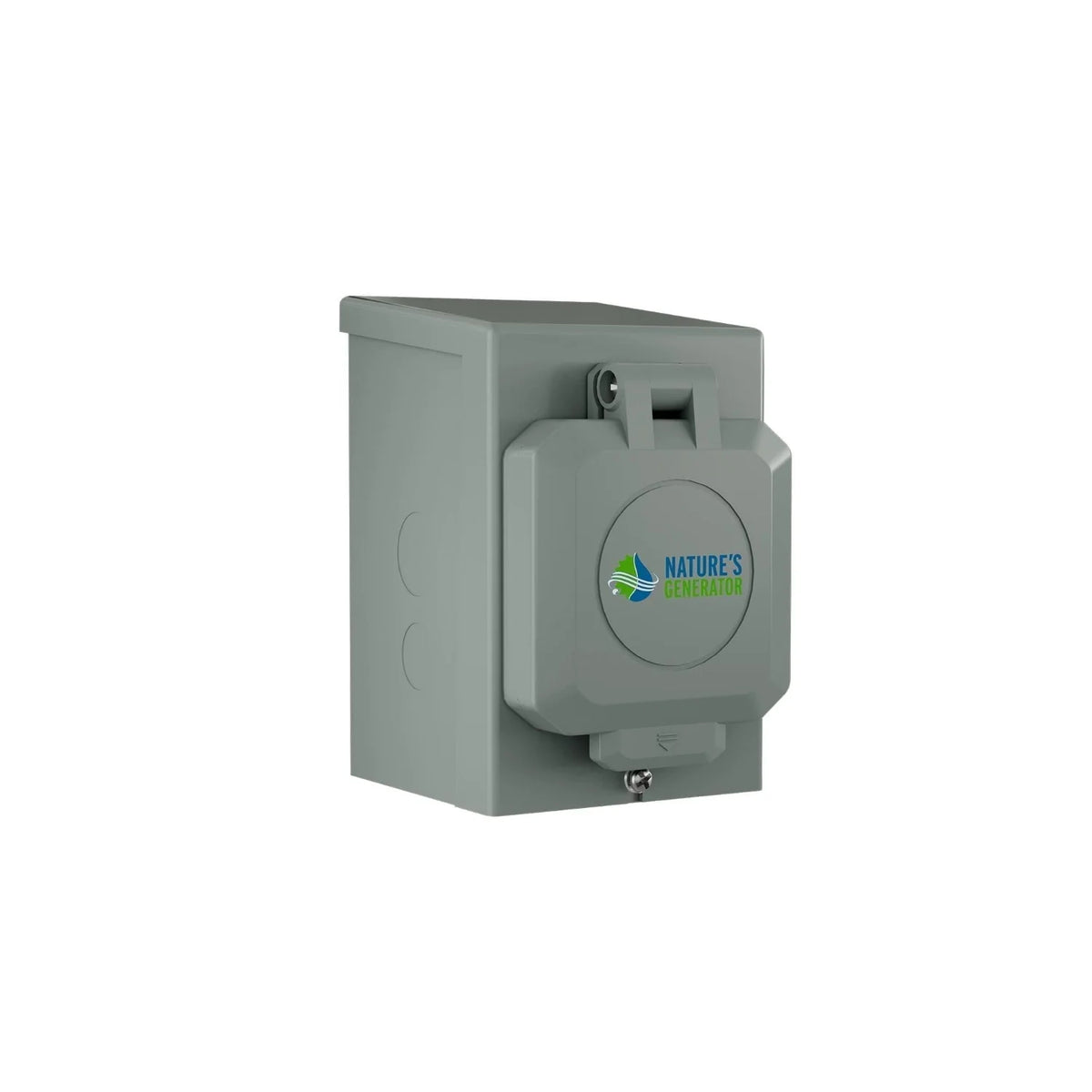

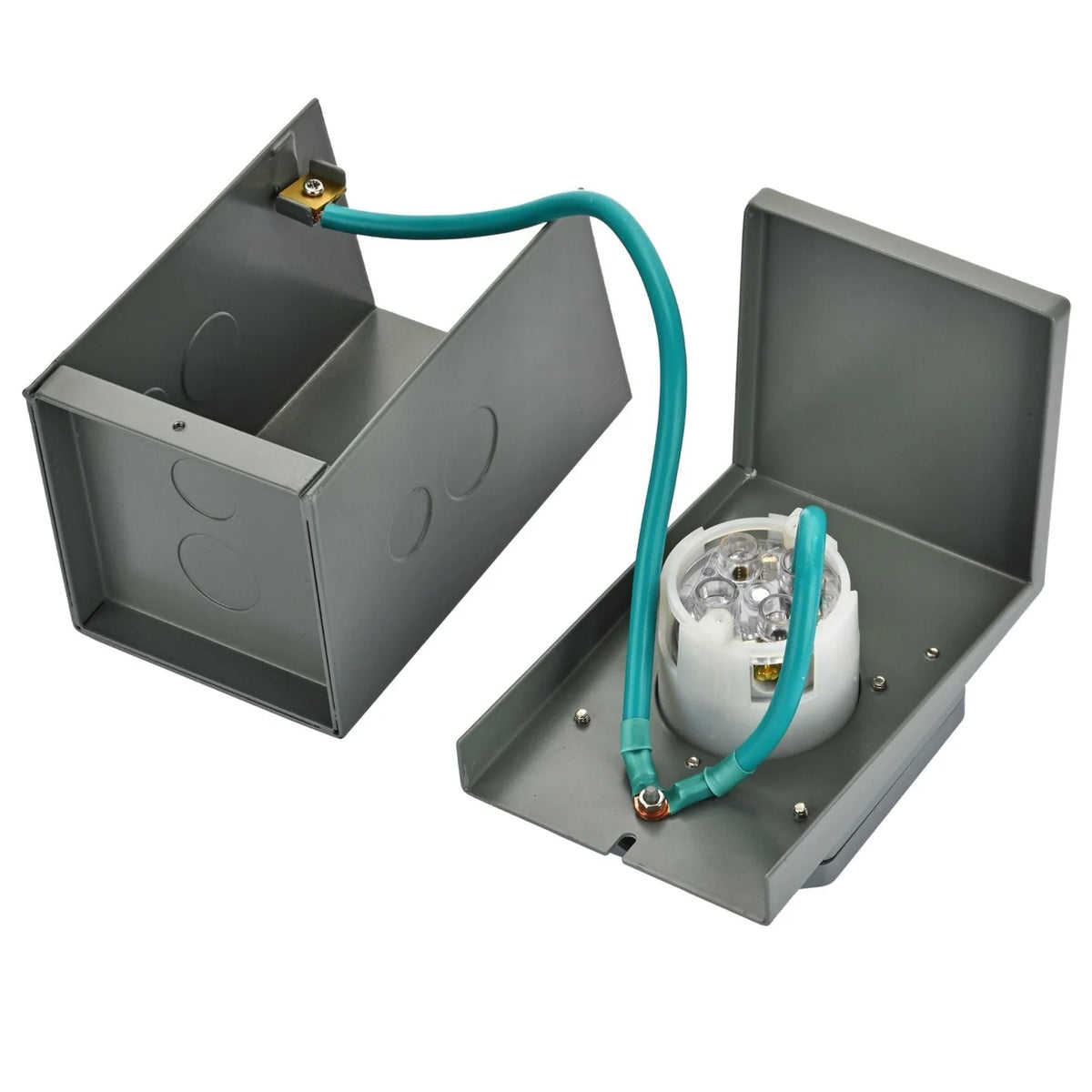

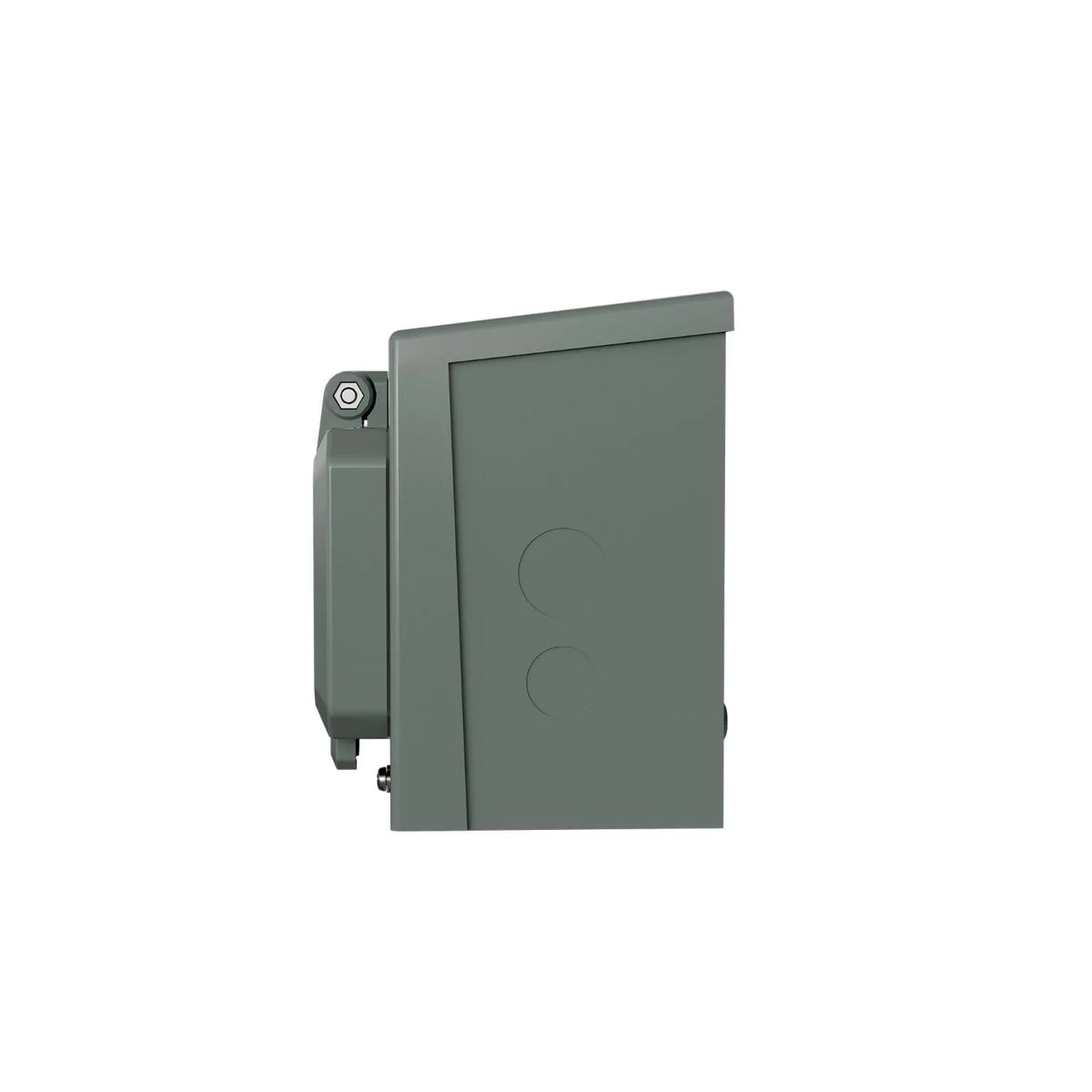

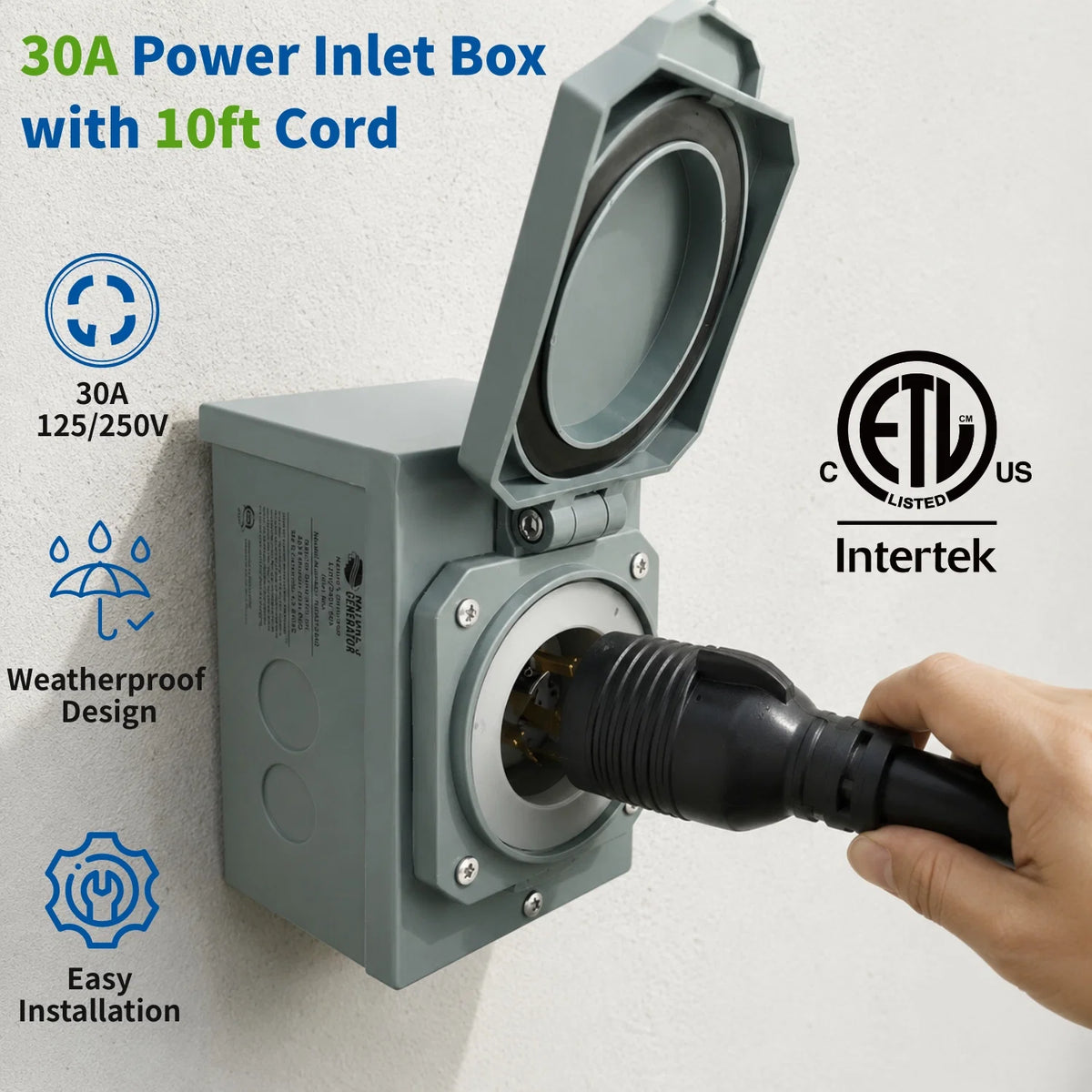

A 30A weatherproof power inlet box that provides a secure generator connection for compatible backup power systems.

Overview

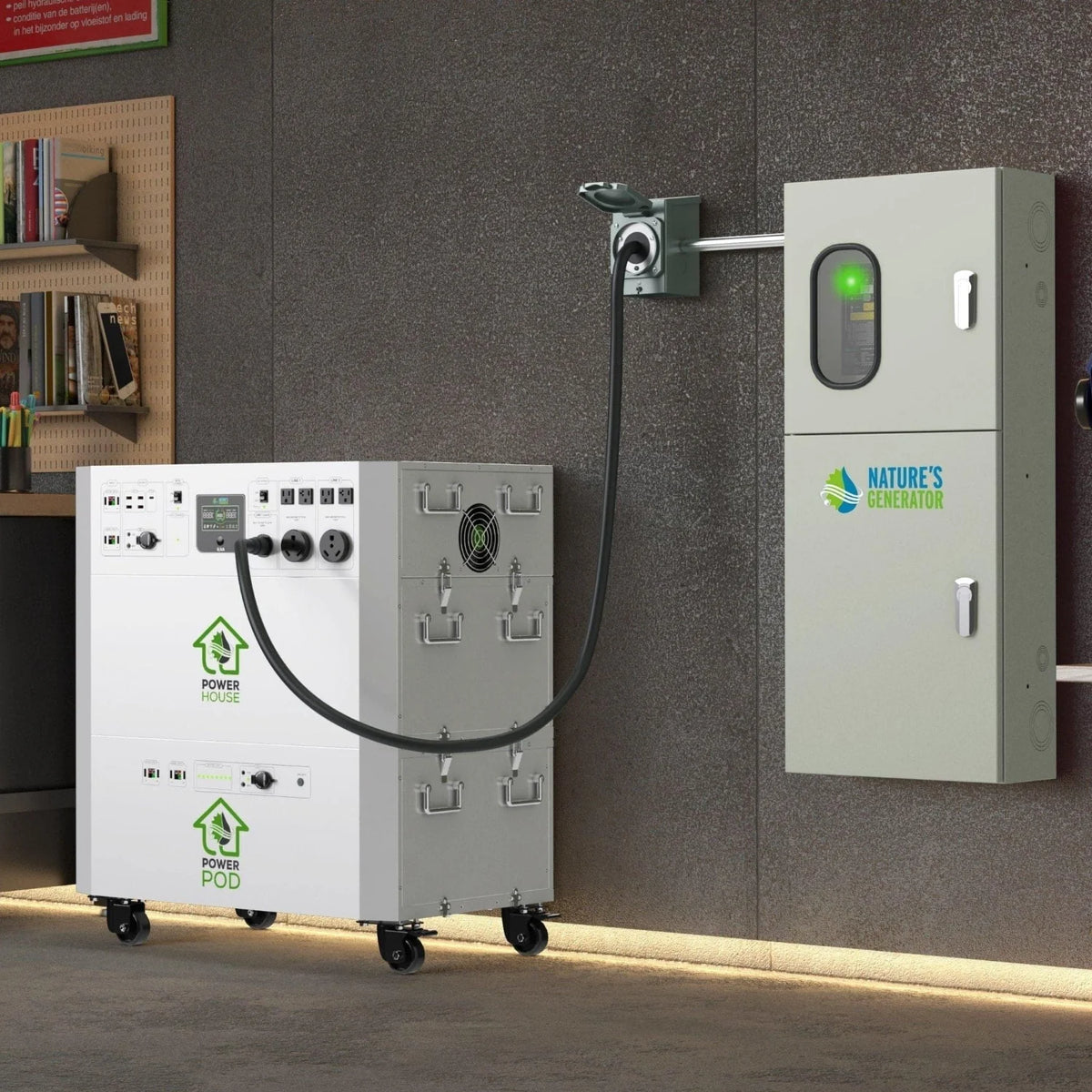

The 30A Inlet Box provides a connection point between a compatible generator cord and a manual or automatic transfer switch or electrical panel. It supports up to 30A at 125/250V AC and is designed for outdoor backup power installations.

Benefits

  • Provides a secure connection for compatible generator and transfer switch systems.
  • Supports generator output up to 7,500W for essential circuits and appliances.
  • Protects internal connections from outdoor conditions with a weatherproof enclosure.
  • Supports common generator connections through an L14-30P inlet.

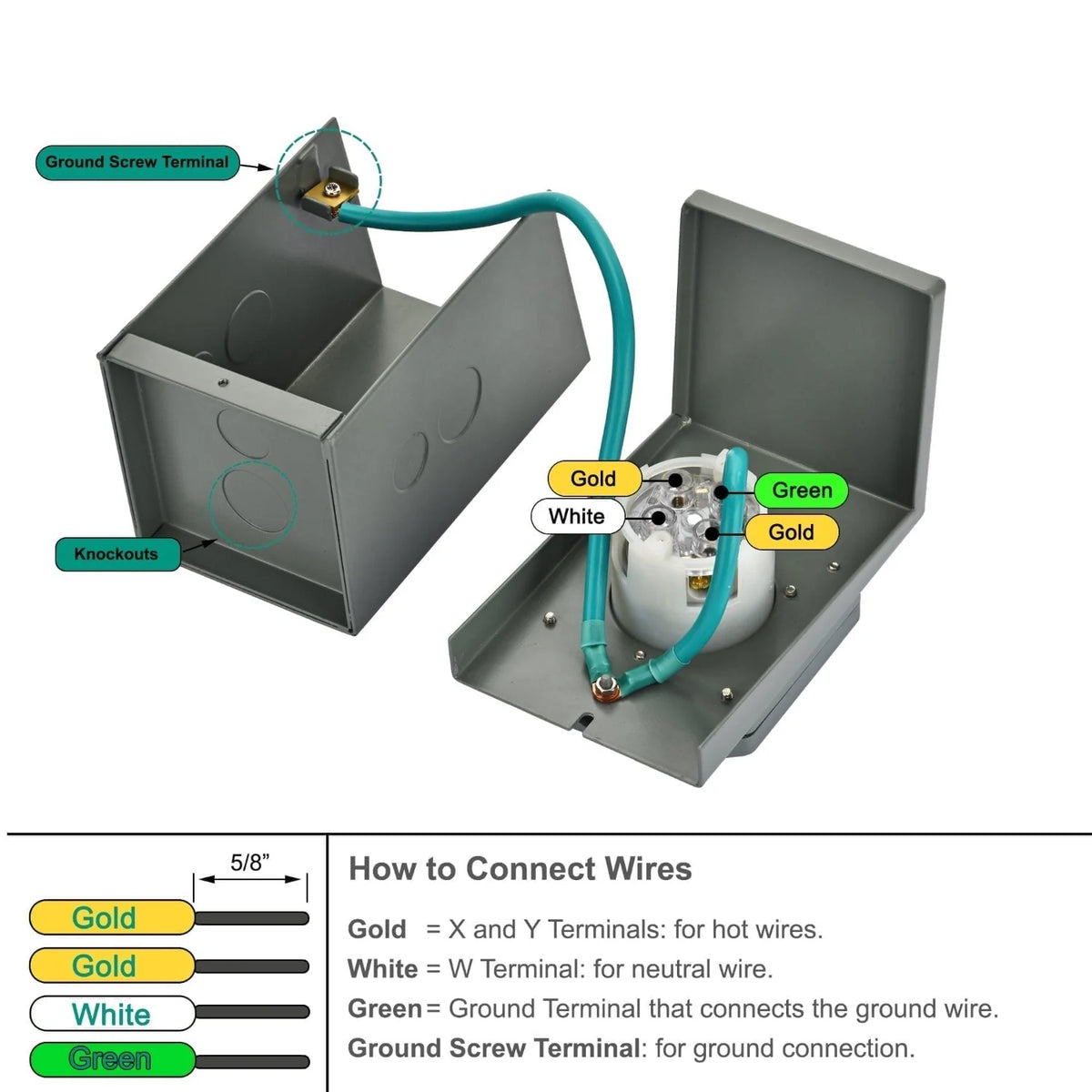

  • Simplifies installation with a surface-mount design and standard electrical wiring practices.

Features

  • 30A power inlet provides the specified generator connection capacity.

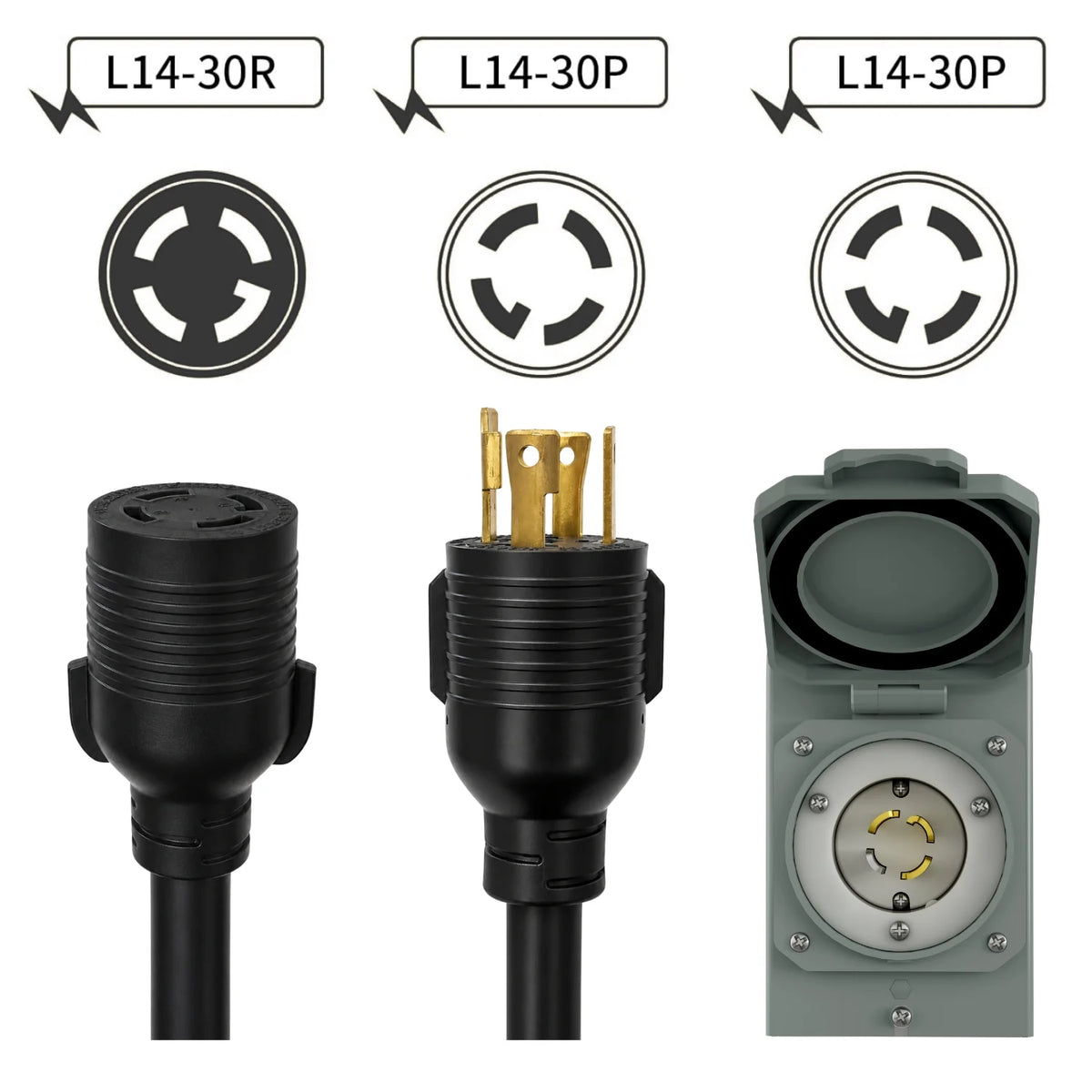

  • NEMA L14-30P inlet supports standard 30A, 125/250V AC generator connections.
  • 7,500W maximum load supports the specified maximum generator output.

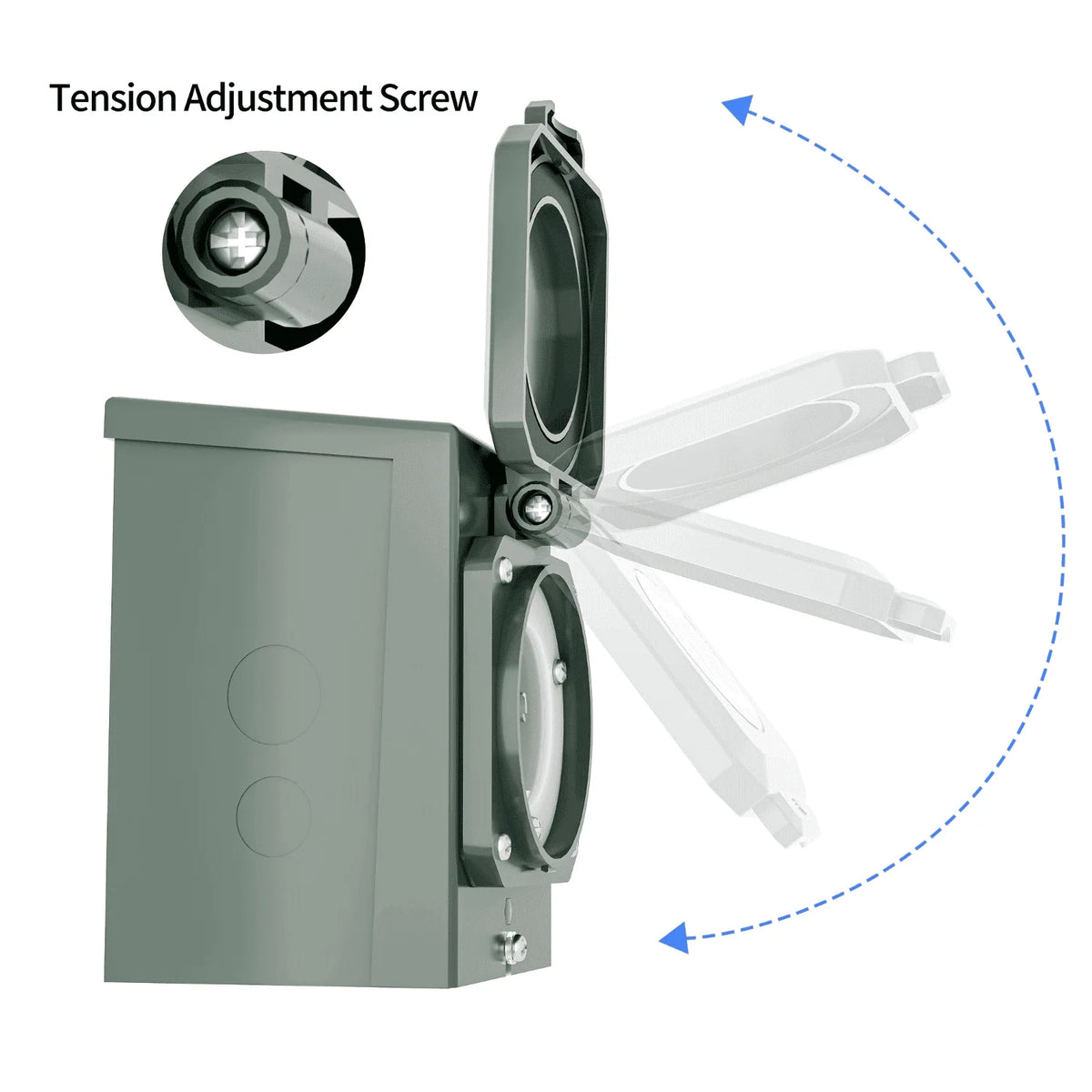

  • Weather-resistant enclosure helps protect internal components and connections from outdoor conditions.

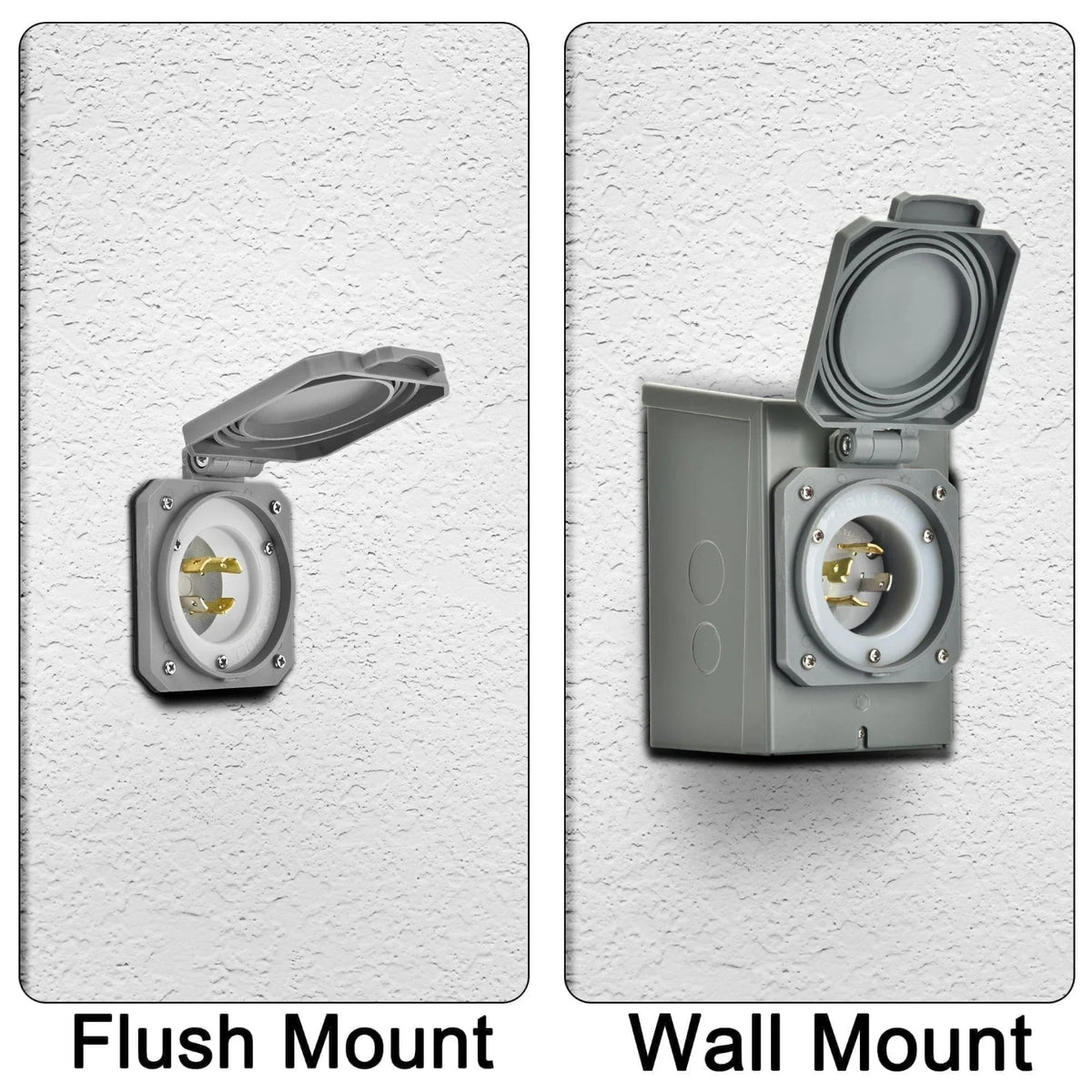

  • Surface-mount design supports straightforward outdoor installation.
  • Outdoor-ready construction is designed for use in outdoor backup power applications.
  • UL 498 and CSA C22.2 No. 42-10 certification provides documented safety certification.

Specifications

  • Input Current: 30A
  • Rated Voltage: 125V/250V AC
  • Plug Type: L14-30P
  • Maximum Wattage: 7,500W
  • Dimensions: 6.5 × 3.8 × 4.9 in. (165 × 97 × 124 mm)
  • Weight: 2.9 lbs (1.32 kg)
  • Installation Type: Surface mount
  • Certification: UL 498; CSA C22.2 No. 42-10
  • MyGrid 10,000W Compatibility: Full support
  • Powerhouse 7200W Compatibility: Full support
  • Lithium 6000W Compatibility: Full support
  • Lithium 3600W Compatibility: Requires combiner

Documents

User Guide
UL 498 and CSA C22.2 No. 42-10 safety standards
