A 15A manual transfer switch that gives homeowners controlled generator power for essential circuits during outages.
Overview

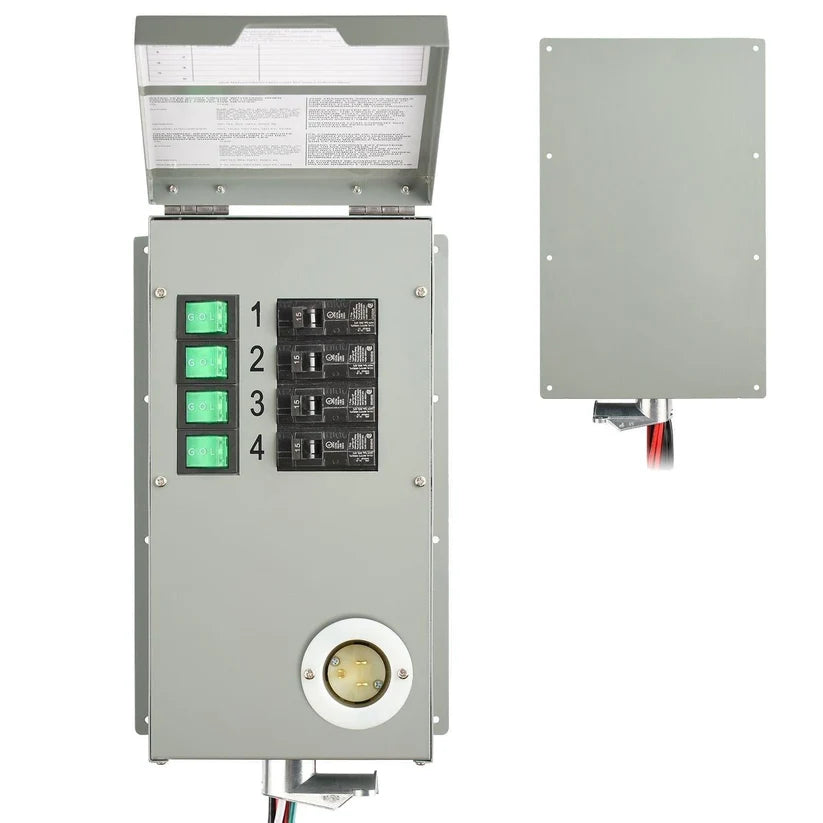

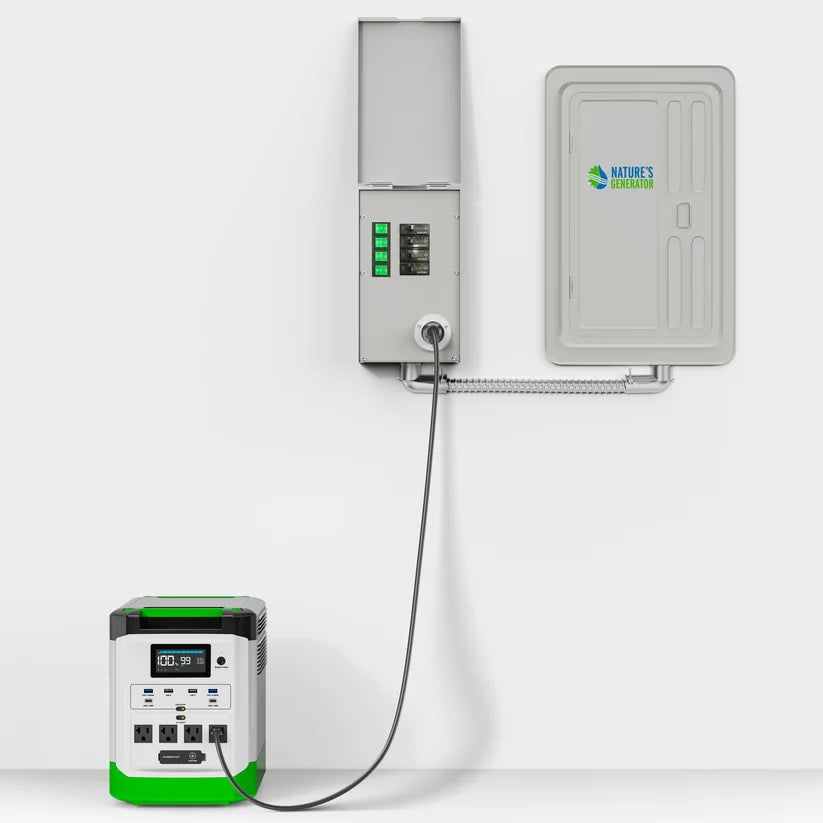

The 120V 15A 4-Circuit Manual Transfer Switch provides a manual connection between a compatible generator and a home's electrical system. It supports up to four circuits and allows users to select which circuits receive generator power during an outage.
Benefits
- Provides controlled generator power to essential home circuits during outages.
- Helps manage available generator capacity by allowing specific circuits to be selected manually.
- Supports electrical system protection by preventing backfeeding when properly installed and operated.
- Simplifies generator connection with pre-wired components and included connection hardware.
- Provides clear generator power status through illuminated switches.
Features

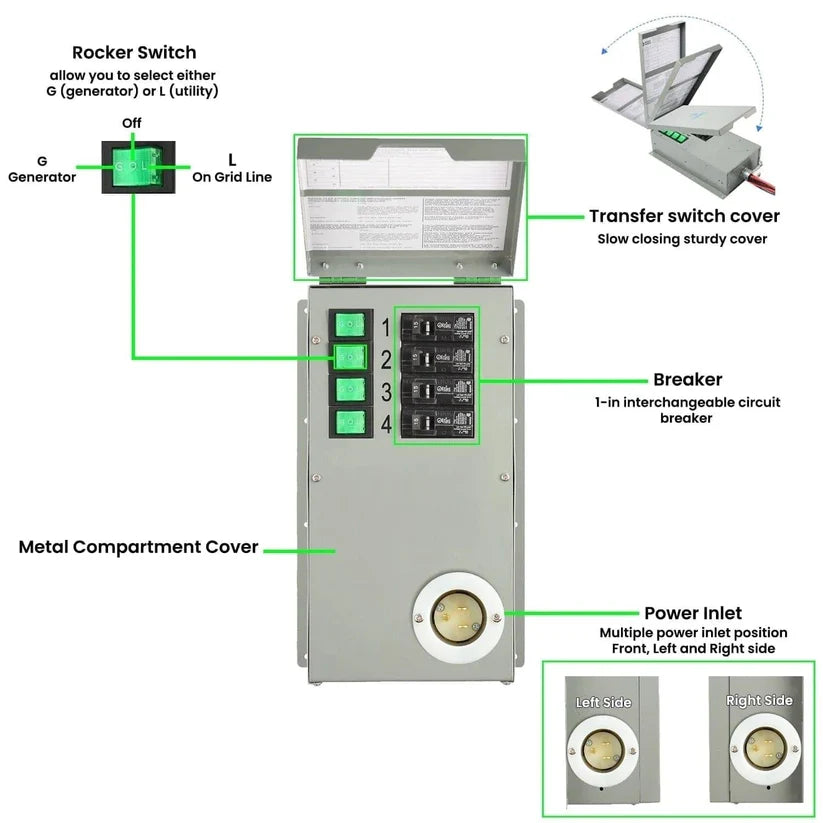

- Manual circuit selection allows individual circuits to be switched between utility and generator power.
- 15A power capacity supports generator connections rated at 120V and 15 amps.
- Four-circuit support provides control over up to four selected electrical circuits.
- AFCI/GFCI breaker compatibility allows compatible protective breakers to be used.
- Steel enclosure provides the specified enclosure construction.
- Illuminated rocker switches indicate generator power status.
- NEMA 5-15P inlet provides the specified generator connection interface.

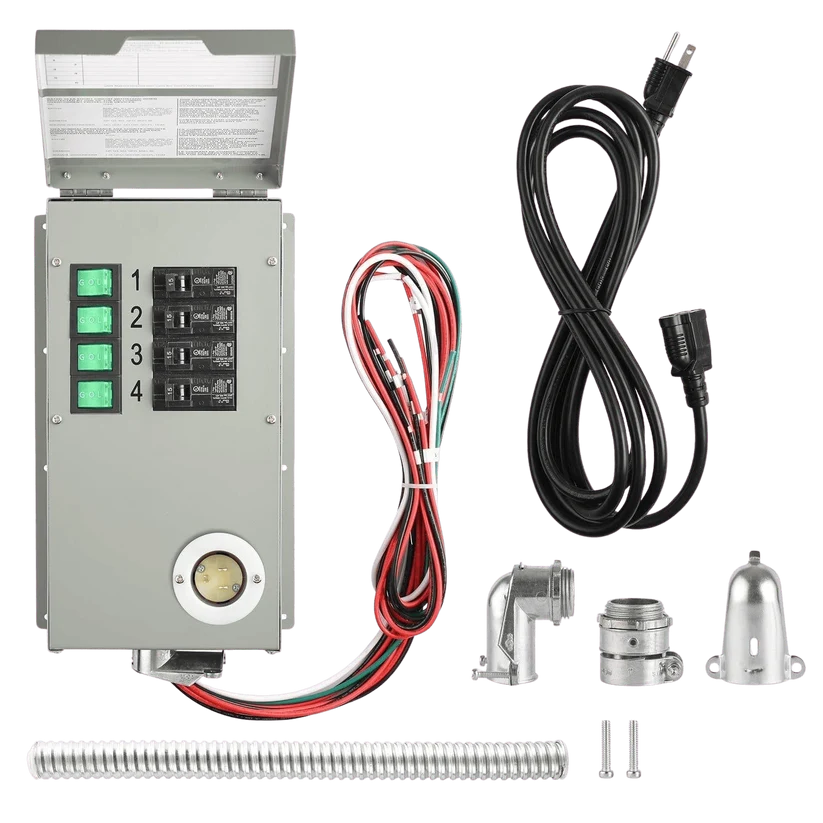

- 15A power cord is included for connecting compatible generator systems.
- Pre-wired components simplify installation with compatible systems.
- UL 1008 and CAN/CSA C22.2 No. 178.1 certification provides documented safety certification for the transfer switch.
Specifications
- Voltage: 120V
- Power Rating: 15A
- Inlet: NEMA 5-15P
- Number of Circuits: 4 circuits

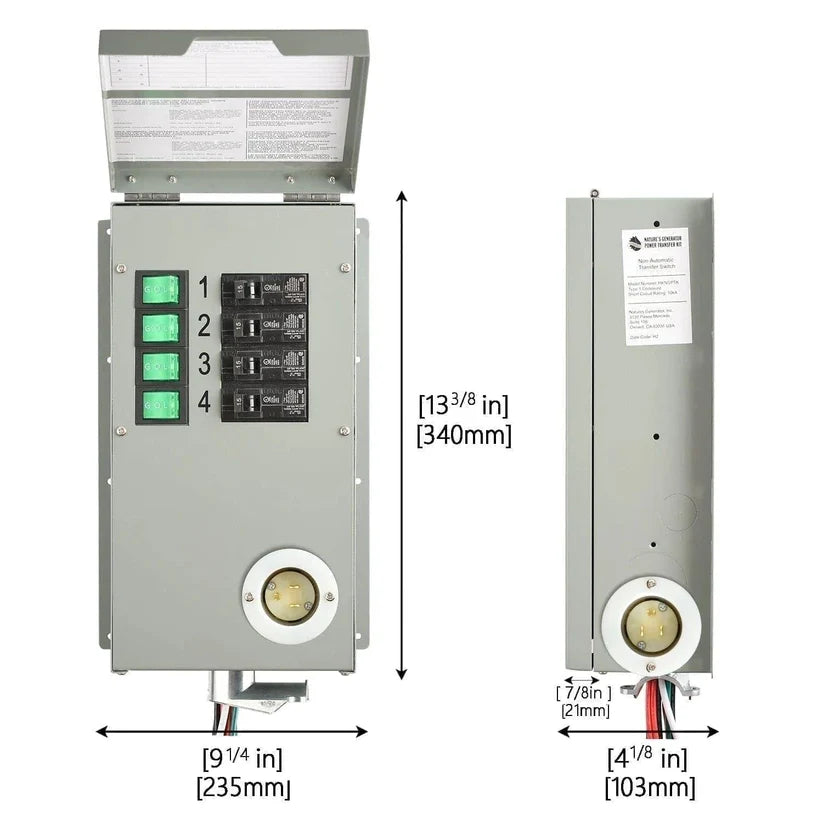

- Dimensions: 9 1/4 × 13 3/8 × 4 1/8 in. (235 × 340 × 103 mm) W × D × H
- Weight: 10.1 lbs (4.58 kg)
- Warranty: 5-Year Limited Warranty
- Storage Temperature: 23–111°F (-5–45°C)
- Operating Temperature: 32–104°F (0–40°C)
- Certification: UL 1008; CAN/CSA C22.2 No. 178.1
- Pre-Installed Breakers: 4 × 1-pole 15A breakers with 12 AWG wire
- Backup Power Conductors: Line 1: 12 AWG; Neutral: 12 AWG; Ground: 12 AWG
Documents
120V 15A 4-Circuit Manual Transfer Switch Specification Sheet
15A Manual Transfer Switch Installation Guide
Certificate of Compliance - UL1008, CAN/CSA C22.2 No. 178.1
Nature's Generator
Nature's Generator - 120V 15A 4-Circuit Non-Automatic Transfer Switch
- Regular price
- $199.99
A 15A manual transfer switch that gives homeowners controlled generator power for essential circuits during outages.
Overview
The 120V 15A 4-Circuit Manual Transfer Switch provides a manual connection between a compatible generator and a home's electrical system. It supports up to four circuits and allows users to select which circuits receive generator power during an outage.
Benefits
- Provides controlled generator power to essential home circuits during outages.
- Helps manage available generator capacity by allowing specific circuits to be selected manually.
- Supports electrical system protection by preventing backfeeding when properly installed and operated.
- Simplifies generator connection with pre-wired components and included connection hardware.
- Provides clear generator power status through illuminated switches.
Features
- Manual circuit selection allows individual circuits to be switched between utility and generator power.
- 15A power capacity supports generator connections rated at 120V and 15 amps.
- Four-circuit support provides control over up to four selected electrical circuits.
- AFCI/GFCI breaker compatibility allows compatible protective breakers to be used.
- Steel enclosure provides the specified enclosure construction.
- Illuminated rocker switches indicate generator power status.
- NEMA 5-15P inlet provides the specified generator connection interface.
- 15A power cord is included for connecting compatible generator systems.
- Pre-wired components simplify installation with compatible systems.
- UL 1008 and CAN/CSA C22.2 No. 178.1 certification provides documented safety certification for the transfer switch.
Specifications
- Voltage: 120V
- Power Rating: 15A
- Inlet: NEMA 5-15P
- Number of Circuits: 4 circuits
- Dimensions: 9 1/4 × 13 3/8 × 4 1/8 in. (235 × 340 × 103 mm) W × D × H
- Weight: 10.1 lbs (4.58 kg)
- Warranty: 5-Year Limited Warranty
- Storage Temperature: 23–111°F (-5–45°C)
- Operating Temperature: 32–104°F (0–40°C)
- Certification: UL 1008; CAN/CSA C22.2 No. 178.1
- Pre-Installed Breakers: 4 × 1-pole 15A breakers with 12 AWG wire
- Backup Power Conductors: Line 1: 12 AWG; Neutral: 12 AWG; Ground: 12 AWG
Documents
120V 15A 4-Circuit Manual Transfer Switch Specification Sheet
15A Manual Transfer Switch Installation Guide
Certificate of Compliance - UL1008, CAN/CSA C22.2 No. 178.1
- Regular price
- $199.99
